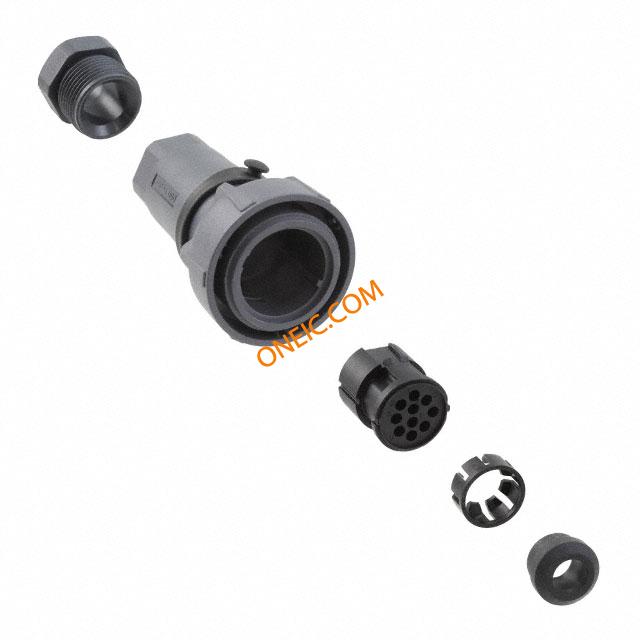

PXP7011/10P/CR/0911

点击放大查看

PXP7011/10P/CR/0911

制造商
Bulgin
描述
CONN HSG RCPT FLEX 10POS PINS Standard Circular Connector 10P InLine FlexConn male crimp term CIRCULAR CONNECTOR, PLUG, 10 WAY, CABLE Conn.;In-LineFlex;10-P;Male/Pin;CrimpTerm.;9-11mmCableEntry;Thermoplastic Bulgin Buccaneer 系列 7000 10路 自由悬挂 直向 连接器 插座 , 公触点, 快速连接接合
分类
连接器解决方案圆形连接器军用圆形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称708-1650标准包装数量1

合规参数

RoHSRoHS Compliant海关税号85369010
材料阻燃等级UL 94 V-0

电气参数

额定电压277 V, 600 V最大额定电流6 A, 10 A
连接器类型 - 电压输入Female

机械参数

重量0.054包装方式Bulk
导线线规20-18方向Keyed
外壳样式Receptacle触头类型Crimp
安装类型Free Hanging (In-Line)连接器类型Receptacle for Male Contacts
紧固类型Bayonet Lock安装样式In-Line
插入角度:-本体材料:PBT (Polybutylene Terephthalate), PC (Polycarbonate)
壳体材料Polycarbonate (PC), Polybutylene Terephthalate (PBT)端接样式Crimp
第一触头极性:Pin触点数10
位数10外壳尺寸-插件:(Not Available)
外壳材料及表面处理Polycarbonate/Polybutylene Terephthalate (PBT)第一连接器安装类型:Cable

产品信息

备注Contacts Not Provided连接器性别:Plug
系列7000产品子类型Receptacles

环境参数

防护等级IP66/68/69K - Dust Tight, Water Resistant, Waterproof
