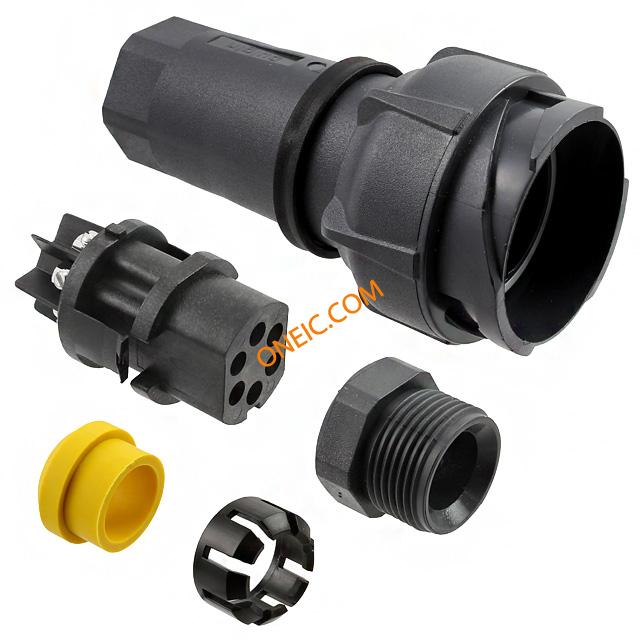

点击放大查看
商业参数
| 其他名称 | 708-1694 | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Nickel | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 触头材料 | Brass |
| 壳体材料 | Polycarbonate (PC), Polybutylene Terephthalate (PBT) | 端接样式 | Screw |
| 第一触头极性 | Socket (Female) | 配接方向 | Quick Lock |
| 触点数 | 6 | 位数 | 6 |
| 外壳材料及表面处理 | Polycarbonate/Polybutylene Terephthalate (PBT) | ||
产品信息
| 系列 | 7000 | 产品子类型 | Connectors |
环境参数
| 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 120°C |
