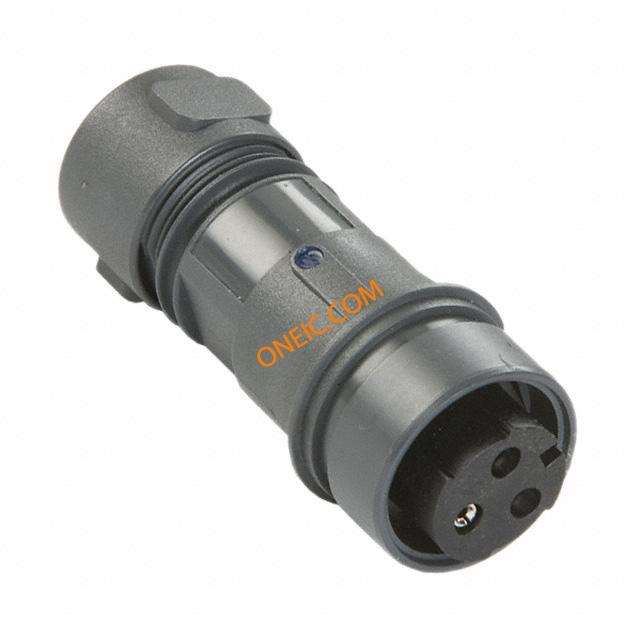

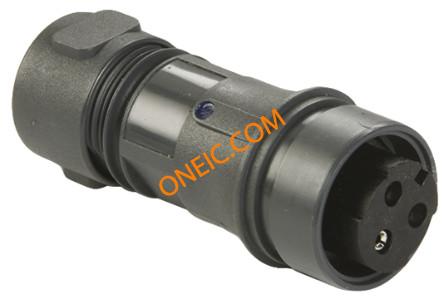

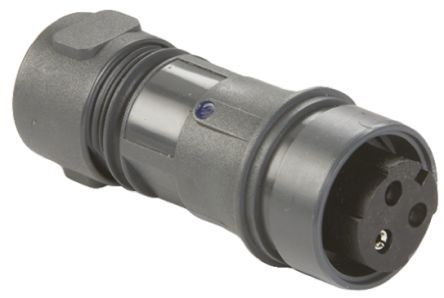

PXP6011/03S/ST/0507
| 制造商 | |
| 描述 | CONN RCPT IN-LINE 3POS SKTS Flex in-line connector,3w,socket contact Standard Circular Connector FLEX CONCT 3 POLE THERMO PLASTIC FLEX IN-LINE CONNECTOR, 3 WAY, SKT Flexin-lineconnector,3polesocketcontacts Connector: circular; plug; female; PIN:3; 6000; nickel plated; 16A Cable Plug 2+PE, PXP6011/03S/ST/0507, Bulgin Bulgin 6000 系列 3路 电缆安装 直向 连接器 插头 , 母触点, 推挽式接合 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 工作电压 | :277V |
| 最大额定电流 | 12A | ||
机械参数
| 重量 | 0.07502 | 包装方式 | Bulk |
| 外壳尺寸 | 26mm | 方向 | Keyed |
| 端接方式 | Screw | 安装类型 | Free Hanging (In-Line) |
| 电缆直径 | 5...7mm | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Nickel | 紧固类型 | Push-Twist |
| 安装样式 | for cable | 连接器用途 | Push-Pull |
| 插入角度 | :- | 锁定特性 | external bayonet, push-pull |
| 本体材料 | :PBT (Polybutylene Terephthalate), PC (Polycarbonate) | 触头材料 | Brass |
| 壳体材料 | PC/PBT | 包装数量 | 25 |
| 连接器 - 电缆 | plug | 端接样式 | Screw |
| 第一触头极性 | Female | 触点数 | 3 |
| 接触件端接 | :Screw | 位数 | 3 |
| 外壳尺寸-插件 | :- | 最大电缆长度 | 1.5mm2 |
| 外壳材料及表面处理 | Polycarbonate/Polybutylene Terephthalate (PBT) | 触点材料 - 镀层 | nickel plated |
| 外壳与棱镜材料 | PBT, polycarbonate | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 25 | 连接器性别 | Male |
| 系列 | 6000 | 产品子类型 | Connectors |
| 适配器系列 | 6000 | 单元数量 | 1 |
环境参数
| 密封等级 | IP66, IP68, IP69K | 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 120°C | ||
