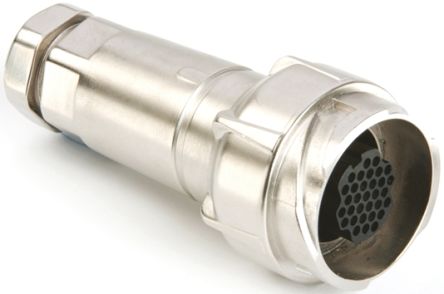

PXM7011/10S/CR/0911/SN
| 制造商 | |
| 描述 | CONN RCPT FLEX 10POS FOR SKTS Standard Circular Connector Metal In-Line 10pos FML crimp w/screen CIRCULAR CONNECTOR, PLUG, 10 WAY, CABLE Conn.;In-LineFlex;10-P;Fem/Socket;CrimpTerm.;9-11mmCableEntry;Metal;w/Screen Bulgin Buccaneer 系列 7000 10路 自由悬挂 直向 连接器 插头 , 母触点, 快速连接接合 |
| 分类 |
商业参数
| 其他名称 | 708-1836 | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 277 V, 600 V | 最大额定电流 | 6 A, 10 A |
| 连接器类型 - 电压输入 | Female | ||
机械参数
| 重量 | 0.222 | 包装方式 | Bulk |
| 导线线规 | 20-18 | 方向 | Keyed |
| 外壳样式 | Receptacle | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | In-Line | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | :- | 本体材料 | :Zinc |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 触点数 | 10 | 位数 | 10 |
| 外壳尺寸-插件 | :(Not Available) | 外壳材料及表面处理 | Zinc Alloy, Nickel Plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Plug |
| 系列 | 7000 | 产品特性 | Shielded |
| 产品子类型 | Receptacles | ||
环境参数
| 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | ||
相关型号
PXM7090
Bulgin
CABLE BRAID TERMINATION OPTION Standard Circular Connector CableBraid Screening Supplied w/tie wrap CABLE SCREEN TRAP, FOR BRAID TERMINATION CableBraidScreeningAccessory;Suppliedw/TieWrap Bulgin IP66，IP68，IP69K 银 金属 电缆固定头 , -40°C至+120°C

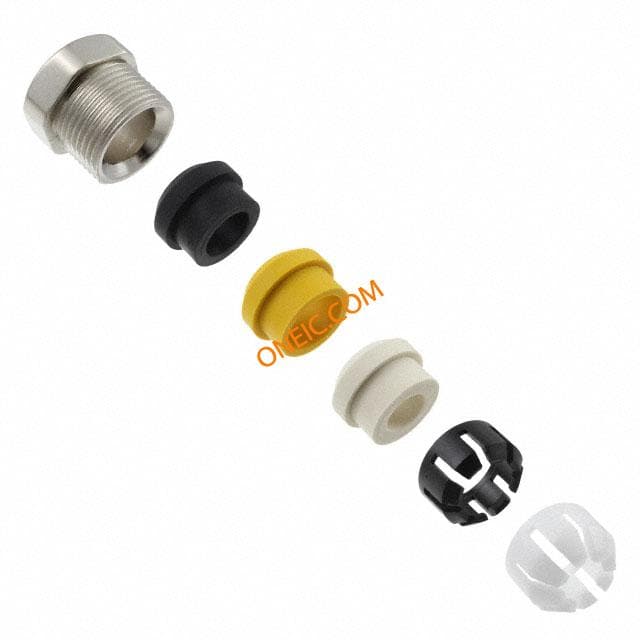

PXM7088/0713
