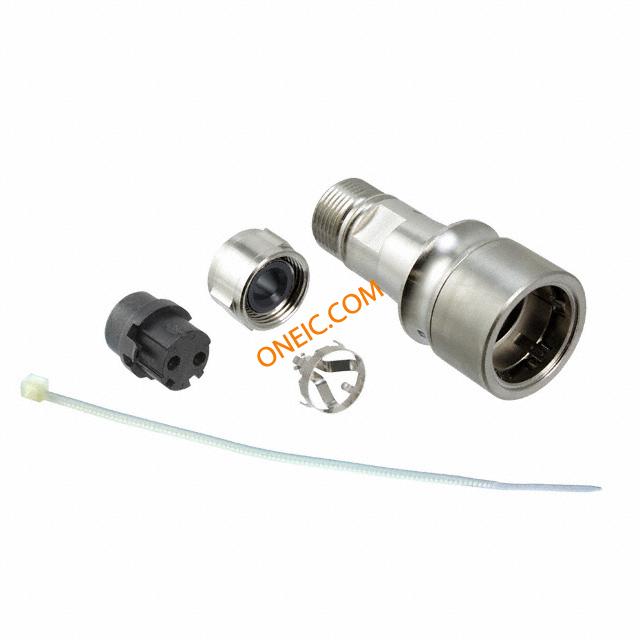

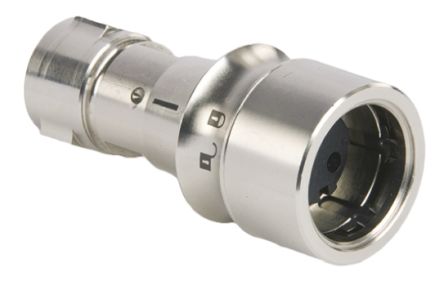

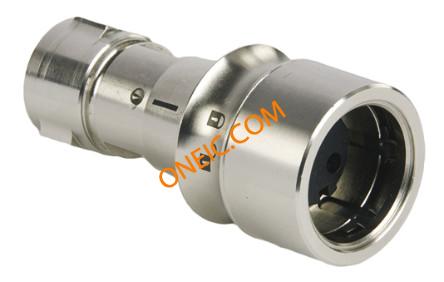

PXM6010/02S/ST/0507/SN
| 制造商 | |
| 描述 | CONN PLUG FLEX 2POS SKTS Flex connector,2 way socket contacts Standard Circular Connector FLEX CONCT 2 POLE METAL VERSION CONNECTOR, CIRCULAR, PLUG, 2POS, CABLE Flexconnector,2polesocketcontacts Bulgin 6000 系列 2路 电缆安装 直向 连接器 插头 , 母触点, 推挽式接合 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 10 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 277VAC/DC | 最大额定电流 | 16A |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 外壳尺寸 | 32mm | 方向 | Keyed |
| 端接方式 | Screw | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Nickel |
| 紧固类型 | Push-Twist | 连接器用途 | Push-Pull |
| 本体材料 | :Brass | 触头材料 | Brass |
| 壳体材料 | Brass | 第一触头极性 | Female |
| 触点数 | 2 | 位数 | 2 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Brass, Nickel Plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 连接器性别 | Male | 系列 | 6000 |
| 产品特性 | Shielded | ||
环境参数
| 密封等级 | IP66, IP68, IP69K | 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 120°C | ||
