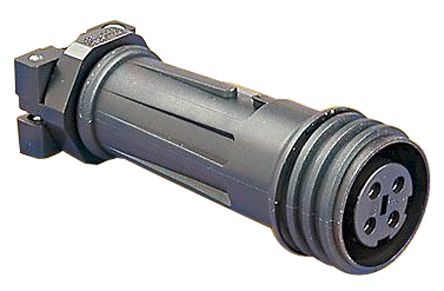

点击放大查看
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压 | 600VAC/DC | 连接器阻抗 | 标准 |
| 最大额定电流 | 32A | ||
机械参数
| 重量 | 0.18 kg | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Screw | 触头类型 | 公插 |
| 安装类型 | Free Hanging (In-Line) | 电缆直径 | 20...22mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | for cable |
| 锁定特性 | threaded joint, internal thread | 触头材料 | brass |
| 壳体材料 | PA | 包装数量 | 10 |
| 端接排数 | 螺钉 | 连接器 - 电缆 | plug |
| 第一触头极性 | Pin (Male) | 触点数 | 5 |
| 位数 | 5 | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - mm² | 2.5...4mm2 | 触点材料 - 镀层 | nickel plated |
| 外壳与棱镜材料 | polyamide | 静电放电屏蔽 | 是 |
产品信息
| SPG | 10 | 系列 | Buccaneer 900 |
| 产品特性 | Cable Clamp | 主要用途 | Cable Clamp |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer 900 |
| 单元数量 | 1 | 基础产品编号 | 900 |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
