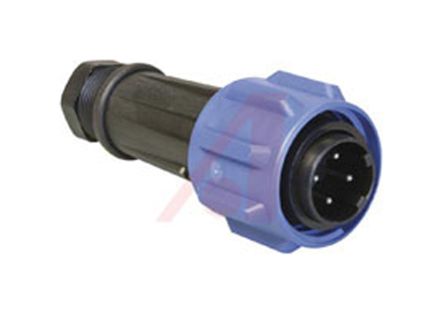

PXA911/04/P
| 制造商 | |
| 描述 | Standard Circular Connector 4 POLE FLEX PLUG CONN PLUG 4POS CABLE PIN 900 Series Buccaneer Connector;Flex 16-18mm White cable gland; 4 Pole Plug Conn Buccaneer PL 4 POS Screw ST Cable Mount 4 Terminal 1 Port CONN PLUG 4POS INLINE PIN 900SeriesBuccaneerConnector,Flex16-18mmWhitecablegland,4PolePlug Connector: circular; plug; male; PIN:4; Buccaneer 900; for cable Bulgin PXA9 系列 900 4路 电缆安装 直向 连接器 插头 , 公触点, 快速连接接合 |
| 分类 |
商业参数
| 其他名称 | Q4328884 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压 | 600VAC/DC | 连接器阻抗 | 标准 |
| 最大额定电流 | 32A | ||
机械参数
| 重量 | 0.15 kg | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Screw | 触头类型 | 公插 |
| 安装类型 | Free Hanging (In-Line) | 电缆直径 | 20...22mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Wire |
| 锁定特性 | threaded joint, internal thread | 触头材料 | brass |
| 壳体材料 | PA | 包装数量 | 10 |
| 端接排数 | 螺钉 | 连接器 - 电缆 | plug |
| 端接样式 | Screw | 第一触头极性 | Pin (Male) |
| 触点数 | 4 | 位数 | 4 |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - mm² | 2.5...4mm2 |
| 触点材料 - 镀层 | nickel plated | 外壳与棱镜材料 | polyamide |
| 静电放电屏蔽 | 是 | ||
产品信息
| SPG | 10 | 系列 | Buccaneer 900 |
| 产品特性 | Cable Clamp | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 900 | 单元数量 | 1 |
| 基础产品编号 | 900 | ||
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
