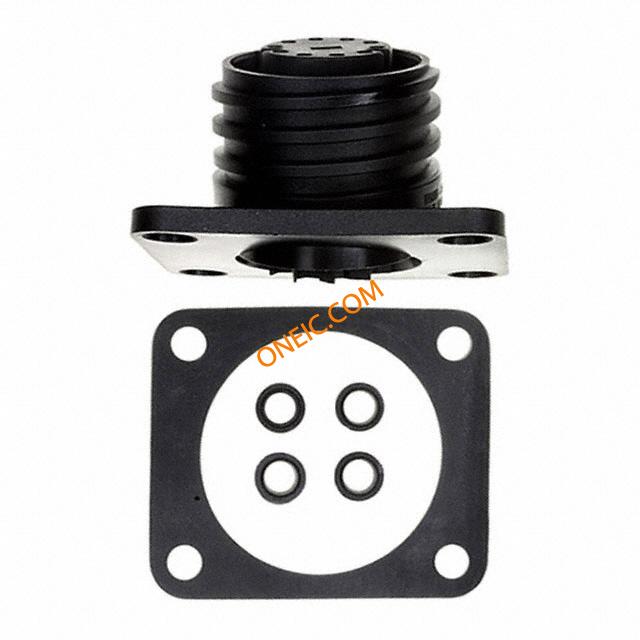

PX0941/10/S
| 制造商 | |
| 描述 | Standard Circular Connector 10 PIN PNL MOUNT SKT CONN RCPT 10POS PNL MNT SKT 10 Pole Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 10 POS Screw Panel Mount 10 Terminal 1 Port SOCKET, FLANGE, 10WAY CABLECONNECTOR,SOCKET,FLANGEMOUNT,900SERIESBUCCANEER,10-WAY,IP68 Connector: circular; socket; female; PIN:10; Buccaneer 900; IP68 Bulgin Buccaneer 系列 10路 面板安装 连接器 , 母触点 |
| 分类 |
商业参数
| 其他名称 | 708-1385 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 250VAC/DC | 最大额定电流 | 10A |
机械参数
| 重量 | 0.083 | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 插入角度 | :- | 锁定特性 | threaded joint, external thread |
| 触头材料 | Brass | 包装数量 | 10 |
| 连接器 - 电缆 | socket | 端接样式 | Screw |
| 第一触头极性 | Female | 触点数 | 10 |
| 接触件端接 | :Screw | 位数 | 10 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - mm² | 0.75...2mm2 | 触点材料 - 镀层 | nickel plated |
| 外壳与棱镜材料 | polyamide | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 10 | 连接器性别 | :Socket |
| 系列 | Buccaneer | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 900 | 单元数量 | 1 |
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
PX0950
Bulgin
Standard Circular Connector R/A MOUNTING BRACKET CONN BLKHD ADPTR USE W/FLANGE MT Bulgin 900 buccaneer bulkhead adaptor Connector Accessories Bulkhead Adapter Moulding Nylon ADAPTOR, BULKHEAD Accessory,Buccaneer;IP68(Sealing);900Series Fixing element; Buccaneer 900; Application: PX0941 sockets Attachable housing, PX0950, Bulgin Bulgin 适配器, 85mm
PX0970
Bulgin
Standard Circular Connector SEALING CAP SEALING CAP W/ALL OTHER CONN Bulgin 900 buccaneer sealing cap type2 Connector Accessories Sealing Cap CAP, SEAL, PX0921/931/941 Accessory,Buccaneer;Allotherstyles;IP68(Sealing);900Series Protection cover; threaded joint, internal thread Protective cap IP 68, PX0970, Bulgin
PX0992
Bulgin
Standard Circular Connector SEALING CAP SEALING CAP FOR PX0931 & PX0941 Heavy duty sealing cap for PX0931 and PX0941 Connector Accessories Sealing Cap HeavydutysealingcapforPX0931andPX0941 Bulgin 连接器

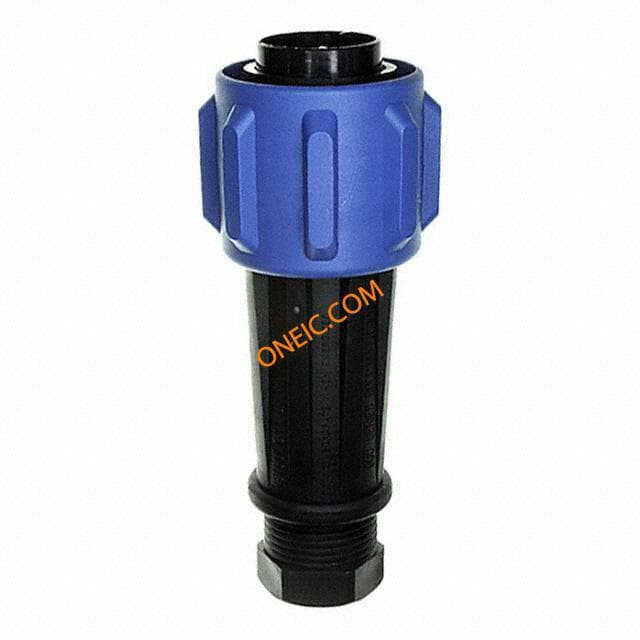

PX0911/10/P
Bulgin
Standard Circular Connector 10 POLE FLEX PLUG CONN PLUG 10POS CABLE PIN Conn Circular M 10 POS ST Cable Mount 10 Terminal 1 Port CONN PLUG 10POS INLINE PIN Buccaneer900SeriesFlexBodyPlug(10pos)StandardCable7-13mmScrewTerm Connector: circular; plug; male; PIN:10; Buccaneer 900; for cable Bulgin PX09 系列 900 10路 电缆安装 直向 连接器 插头 , 公触点, 快速连接接合

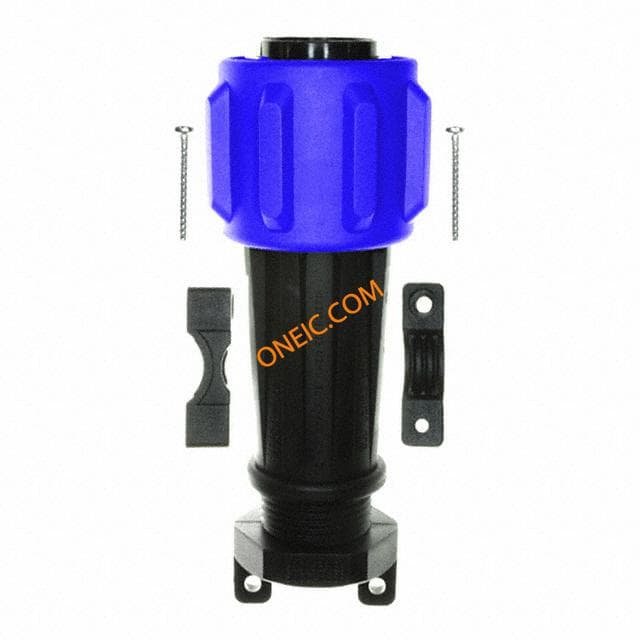

PXA911/10/P
Bulgin
Standard Circular Connector 10 POLE FLEX PLUG CONN PLUG 10POS W/PINS LG CABLE 10 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series PLUG, CABLE, 10WAY CONN PLUG 10POS W/PINS LG INLINE CABLECONNECTOR,PLUG,900SERIESBUCCANEER,10-WAY,IP68 Connector: circular; plug; male; PIN:10; Buccaneer 900; for cable Bulgin Buccaneer 系列 10路 电缆安装 直向 连接器 , 公触点
PXA911/10P
Bulgin
CONN PLUG 10POS CABLE PIN Conn Buccaneer PL 10 POS Screw ST Cable Mount 10 Terminal 1 Port
