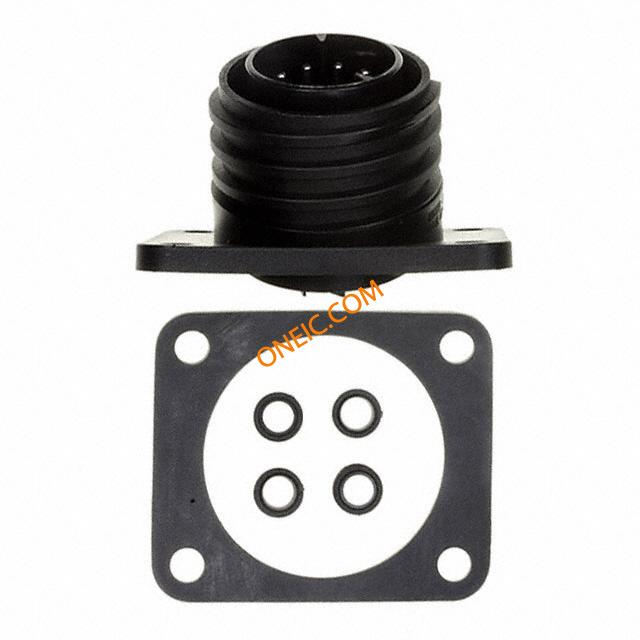

PX0941/10/P
| 制造商 | |
| 描述 | Standard Circular Connector 10 PIN PNL MOUNT PLG CONN RCPT 10POS PNL MNT PIN 10 Pole Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PL 10 POS Screw Panel Mount 10 Terminal 1 Port CABLECONNECTOR,PLUG,FLANGEMOUNT,900SERIESBUCCANEER,10-WAY,IP68 Connector: circular; socket; male; PIN:10; Buccaneer 900; IP68
sale Bulgin Buccaneer 系列 10路 面板安装 连接器 , 公触点 |
| 分类 |
商业参数
| 其他名称 | 708-1384 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压 | 250VAC/DC | 最大额定电流 | 10A |
机械参数
| 重量 | 0.11 kg | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Screw | 触头类型 | 公插 |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | Panel | 锁定特性 | threaded joint, external thread |
| 触头材料 | Brass | 包装数量 | 10 |
| 端接排数 | 螺钉拧紧 | 连接器 - 电缆 | socket |
| 端接样式 | Screw | 第一触头极性 | Male |
| 触点数 | 10 | 位数 | 10 |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - mm² | 0.75...2mm2 |
| 触点材料 - 镀层 | nickel plated | 外壳与棱镜材料 | polyamide |
产品信息
| SPG | 10 | 系列 | Buccaneer |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer 900 |
| 单元数量 | 1 | 输出配置 | Panel Mount, Flange |
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
