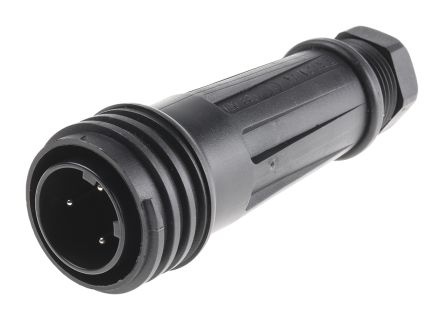

PX0921/03/P
| 制造商 | |
| 描述 | Standard Circular Connector 3 POLE IN-LINE PLG CONN RCPT 3POS INLINE PIN 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PL 3 POS Screw ST Cable Mount 3 Terminal 1 Port PLUG, IN-LINE, 3WAY CableConnector,In-Line;3;Plug;6to8mmDia;In-LineFlex;Screw;32/30A Connector: circular; plug; male; PIN:3; Buccaneer 900; for cable Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL 94V-0 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 600VAC/DC | 工作电压 | :600V |
| 接触电阻 | :10mohm | 介电强度 | :2000V |
| 最大额定电流 | 32A | 绝缘电阻 | :5Mohm |
机械参数
| 宽度 | :46mm | 长度 | :127mm |
| 重量 | 0.1 | 包装方式 | Bulk |
| 导线线规 | :2.5mm² | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 触头类型 | Pin | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 13-15mm | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Brass | 壳体材料 | Polyamide |
| 包装数量 | 10 | 主要材料 | Sealed |
| 连接器 - 电缆 | plug | 端接样式 | Axial Screw |
| 第一触头极性 | Male | 配接方向 | Threaded |
| 触点数 | 3 | 接触件端接 | :Screw |
| 位数 | 3 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - mm² | :4mm² |
| 触点材料 - 镀层 | nickel plated | 外壳与棱镜材料 | polyamide |
| 第一连接器安装类型 | :Cable | ||
产品信息
| SPG | 10 | 类型 | CablePlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 制造商全称 | 900Series | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 900 | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
