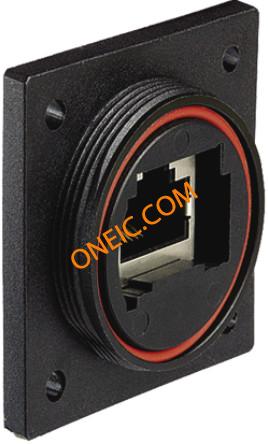

点击放大查看
PX0870
| 制造商 | |
| 描述 | CONN RCPT 8-8 FLANGE MNT IP68 COUPLER MODULAR 8POS-8POS Panel Mount Ethernet Connector Flange Conn RJ-45 F 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e CONNECTOR, CAT5E COUPLER, VERT ETHERNETBUCCANEERCOUPLER,FLANGEMOUNTING,CAT5ESHIELDED Bulgin 直 母 RJ45 连接器 , Cat5e, 屏蔽, 面板安装型 |
| 分类 |
商业参数
| 其他名称 | 708-1367 | 标准包装数量 | 10 |
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 认证机构 | :Cat5e | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | :30V | 最大额定电流 | :1.5A |
机械参数
| 深度 | 33mm | 长度 | 44.5mm |
| 重量 | 0.024 | 屏蔽 | Shielded |
| 方向 | Straight | 安装类型 | Panel Mount, Square Flange |
| 连接器类型 | :Industrial Ethernet | 接触镀层 | Gold |
| 触头材料 | Phosphor Bronze | 壳体材料 | Acrylonitrile Butadiene Styrene (ABS) |
| 触点数 | :8 | 接触件端接 | :IDC / IDT |
| 外壳材料及表面处理 | Polyester | 接触镀层厚度 | 50µin (1.27µm) |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Coupler | 连接器性别 | Female |
| 系列 | :Ethernet Buccaneer | 产品特性 | Circular Threaded Coupling |
| 转换端（适配器端） | Jack, 8p8c (RJ45) | 转换自（适配器端） | Jack, 8p8c (RJ45) |
环境参数
| 额定等级 | Cat5e | 插拔次数 | :1000 |
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 70°C |
文档与媒体
