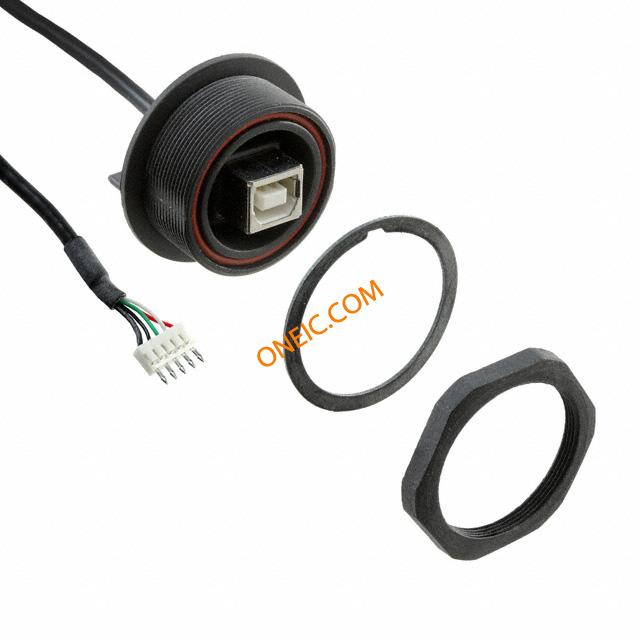

点击放大查看
PX0849/B
| 制造商 | Bulgin |
| 描述 | Modular Connectors / Ethernet Connectors PANEL MT USB B TYPE CONN RCPT IP68 USB B REAR MOUNT Cable Assembly PVC 0.12m 5 POS USB to 5 POS Header F-F USB TYPE B, RECEPTACLE, PANEL USBBUCCANEERREARPANELMOUNT,USBBTYPEIP68,5WAYHEADER Bulgin USB B 系列 PX0849 1 端口 直 母 B 型 USB 2.0, 面板安装, 30 V 交流, 1A |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 30 V | 接触电阻 | :30mohm |
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Black | 长度 | 0.45' (136.9mm) |
| 重量 | 0.024 | 屏蔽 | Shielded |
| 电缆类型 | Round | 安装类型 | Plug |
| 连接器类型 | USB B Female Receptacle to Rectangular 5 pos Header | 接触镀层 | Gold |
| 安装样式 | Panel | 触头材料 | Copper Alloy |
| 触点数 | 4 | 接触件端接 | :Panel Mount |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 用途 | Industrial Environments - IP68 | 连接器性别 | Male |
| 系列 | :Buccaneer | 端口数 | 1 |
| 位置/触点数量 | 4 | ||
环境参数
| 插拔次数 | :1000 | NEMA 机架尺寸 | :IP68 |
| 工作温度 | 0 C to + 70 C | ||
