点击放大查看

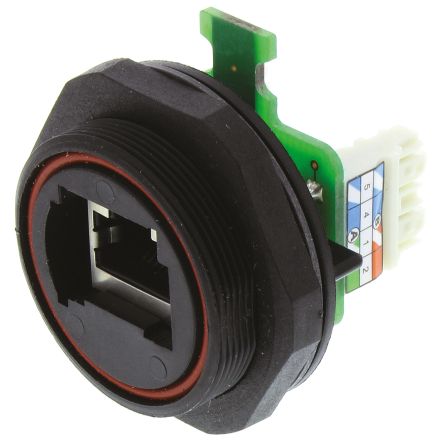

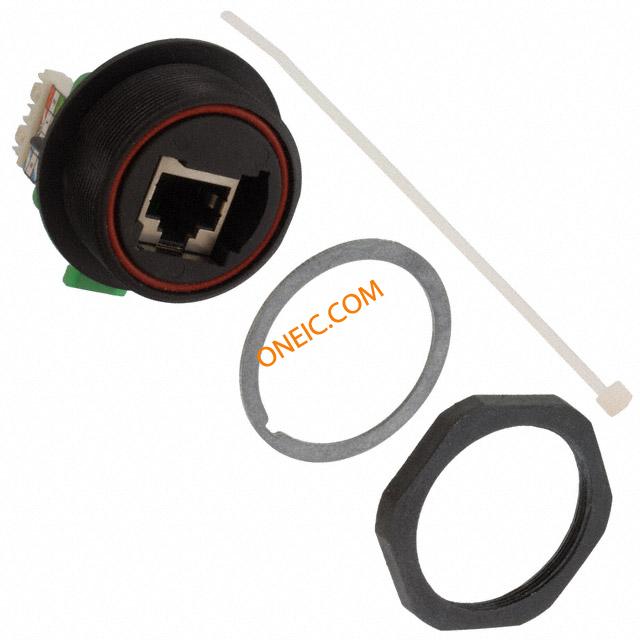

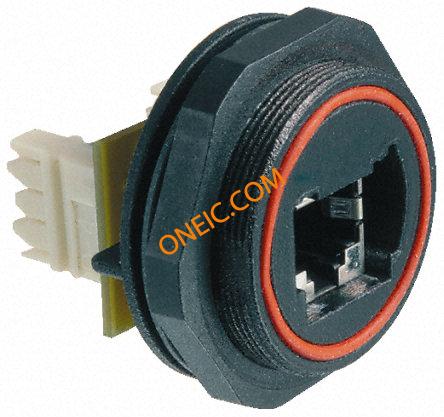

PX0839/IDC
| 制造商 | Bulgin |
| 描述 | モジュラーコネクタ/Ethernetコネクタ CAT 5E COUPLER CONN MOD JACK 8P8C SHIELDED Buccaneer Cat5e IDC mount conn. IP68 Modular Connectors / Ethernet Connectors CAT 5E COUPLER Conn RJ-45 Coupler F 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e CONNECTOR, ETHERNET, IDC MOUNT, 8WAY IP68EthernetBuccaneerIDCtermination(Cat5ecoupler) Bulgin Cat5e RJ45 管接头, 1端口, 带屏蔽 |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 接口 | RJ45 | 额定电压 | 30 V |
| 最大额定电流 | 1.5 A | ||
机械参数

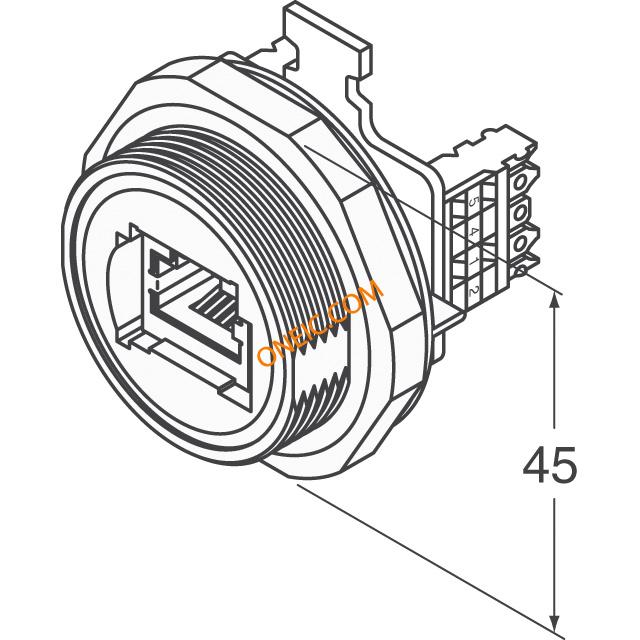

| 颜色 | Black | 深度 | 45mm |
| 宽度 | 42mm | 长度 | 37.7mm |
| 重量 | 0.025 | LED颜色 | Does Not Contain LED |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 方向 | Vertical | 外壳样式 | Plastic |
| 端接方式 | IDC, Color Coded Block | 安装类型 | Panel Mount, Bulkhead |
| 卡扣方向（或“接线片方向”） | User Selectable | 行程角度 | Straight |
| 连接器类型 | Jack | 接触镀层 | Gold |
| 安装样式 | Panel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Acrylonitrile Butadiene Styrene (ABS) |
| 主要材料 | Ethernet | 触点数 | 8 |
| 接触件端接 | :IDC / IDT | 接触镀层厚度 | 50µin (1.27µm) |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Coupler | 连接器性别 | Female |
| 系列 | Buccaneer | 产品特性 | Circular Threaded Coupling |
| USOC 编码 | RJ45 | 端口数 | 1 |
| 性能类别 | Cat 5e | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5e | NEMA 机架尺寸 | :IP68 |
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 70°C |
文档与媒体
相关型号

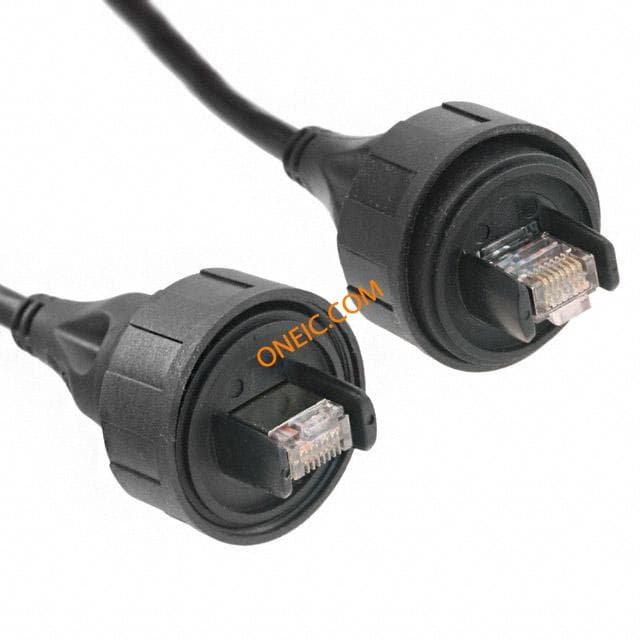

PX0838/3M00
Bulgin
Cable Assemblies IP68 RJ45-IP68 RJ45 CABLE IP68 RJ45 PLUG-PLUG - 3M Buccaneer-Buccaneer patch lead w/conn,3m Ethernet Cables / Networking Cables IP68 RJ45-IP68 RJ45 Cable Assembly Patch Cord 3m 24AWG 8 POS RJ-45 to 8 POS RJ-45 PL-PL PATCH LEAD, 2X BUCCANEER, 3M PatchCord;3m;S-FTP;NonBooted;ExceedsEIA/TIACat5e Bulgin 3m 黑色 PUR护套 S/FTP屏蔽 5e类网线组件
PX0837/5M00
Bulgin
Cable Assemblies IP68 RJ45-SH RJ45 5M CABLE PLUG IP68 RJ45-RJ45 - 5M Buccaneer-RJ45 patch lead w/IP68 conn,5m Ethernet Cables / Networking Cables IP68 RJ45-SH RJ45 5M Cable Assembly Patch Cord 5m 24AWG 8 POS RJ-45 to 8 POS RJ-45 PL-PL PATCH LEAD, 1X BUCCANEER, 5M Connector;SingleEnded;S-FTP;HD-PE;5m;38.1mm;-25todegC;IP68 Cable assembly with 5 m of PUR cable 8, PX0837/5M00, Bulgin Bulgin 5m 黑色 PUR护套 S/FTP屏蔽 5e类网线组件
PX0837/3M00
Bulgin
Cable Assemblies IP68 RJ45-SH RJ45 3M CABLE PLUG IP68 RJ45-RJ45 - 3M Buccaneer-RJ45 patch lead w/IP68 conn,3m Ethernet Cables / Networking Cables IP68 RJ45-SH RJ45 3M Cable Assembly Patch Cord 3m 24AWG 8 POS RJ-45 to 8 POS RJ-45 PL-PL Connector;SingleEnded;S-FTP;HD-PE;3m;38.1mm;-25todegC;IP68 Cable assembly with 3 m of PUR cable 8, PX0837/3M00, Bulgin Bulgin 3m 黑色 PUR护套 S/FTP屏蔽 5e类网线组件
PX0838/2M00
Bulgin
Cable Assemblies IP68 RJ45-IP68 RJ45 CABLE IP68 RJ45 PLUG-PLUG - 2M Buccaneer-Buccaneer patch lead w/conn,2m Ethernet Cables / Networking Cables IP68 RJ45-IP68 RJ45 Cable Assembly Patch Cord 2m 24AWG 8 POS RJ-45 to 8 POS RJ-45 PL-PL PATCH LEAD, 2X BUCCANEER, 2M Connector;2m;24AWG;DoubleEnded;NonBooted;Black;ULListed Patch cord; 2m; RJ45 plug, both sides; Buccaneer Ethernet; PIN:8 Bulgin 2m 黑色 PUR护套 S/FTP屏蔽 5e类网线组件
PX0837/2M00
Bulgin
Cable Assemblies IP68 RJ45-SH RJ45 2M CABLE PLUG IP68 RJ45-RJ45 - 2M Buccaneer-RJ45 patch lead w/IP68 conn,2m Ethernet Cables / Networking Cables IP68 RJ45-SH RJ45 2M Connector;SingleEnded;S-FTP;HD-PE;2m;38.1mm;-25todegC;IP68 Patch cord; 2m; RJ45 plug, both sides; PIN:8; Pin layout:8p8c Cable assembly with 2 m of PUR cable 8, PX0837/2M00, Bulgin Bulgin 2m 黑色 PUR护套 S/FTP屏蔽 5e类网线组件

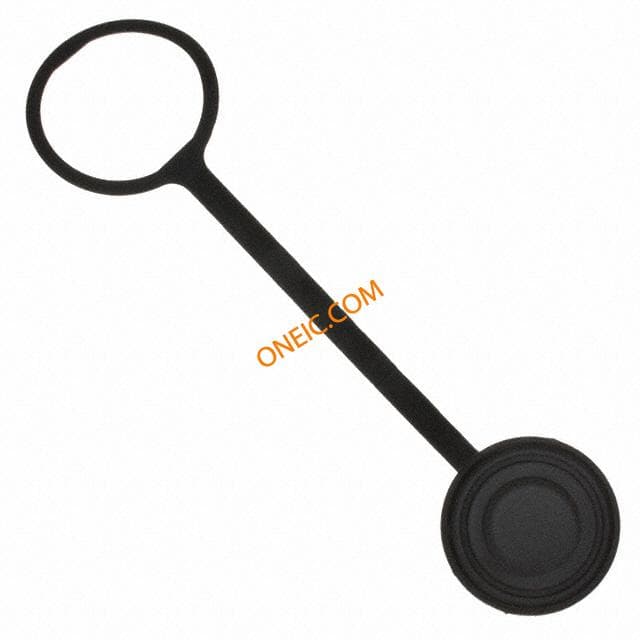

PX0711
