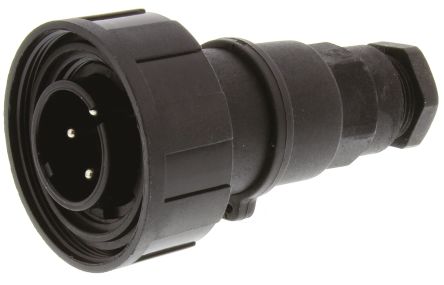

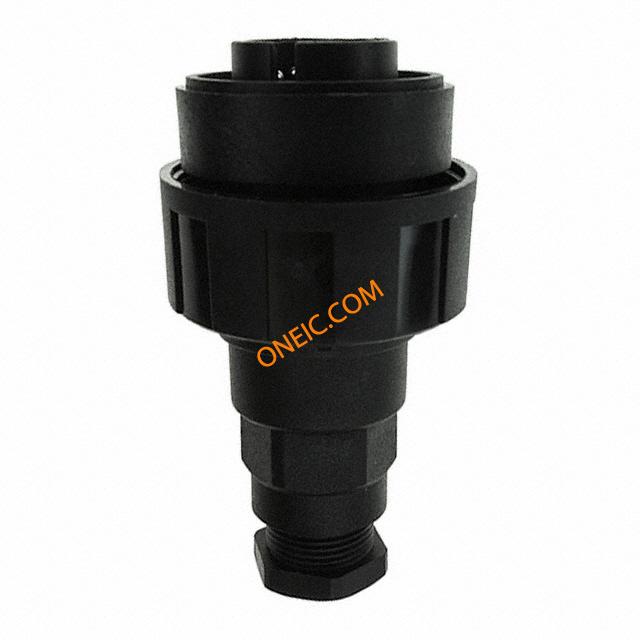

PX0748/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 4 POLE FLEX PLUG CONN PLUG 4POS CABLE PIN 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 4 POS Screw ST Cable Mount 4 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 4 WAY, CABLE CONN PLUG 4POS INLINE PIN Connector,StandardBuccaneer;Pin;4;69.0mm;38.1mm;3.5to9mm;6A Connector: circular; plug; male; PIN:4; Buccaneer Standard; IP68 Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 插头 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 最大额定电流 | 10A |
机械参数
| 重量 | 0.028 | 包装方式 | Bulk |
| 导线线规 | 16 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 触头类型 | Pin | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 插入角度 | :- | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Brass |
| 壳体材料 | GlassFilledPolyamide | 包装数量 | 25 |
| 主要材料 | Sealed | 连接器 - 电缆 | plug |
| 端接样式 | Screw | 第一触头极性 | Male |
| 连接器颜色 | :Black | 配接方向 | Threaded |
| 触点数 | 4 | 接触件端接 | :Screw |
| 介电材料 | Polyamide | 位数 | 4 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8mm |
产品信息
| SPG | 25 | 类型 | CablePlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer Standard | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
