点击放大查看

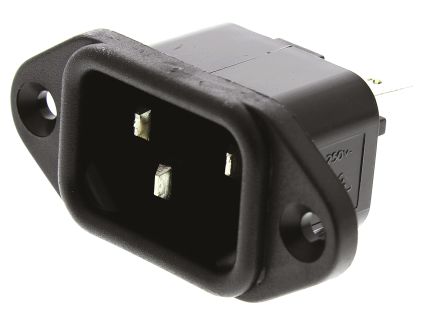

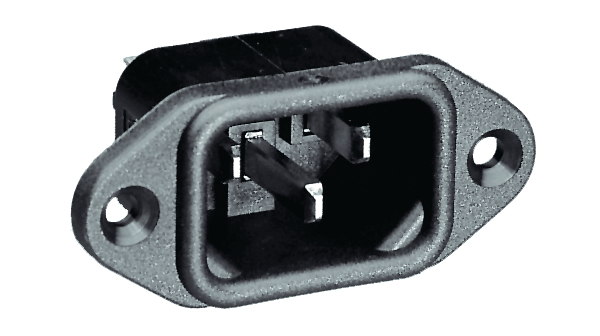

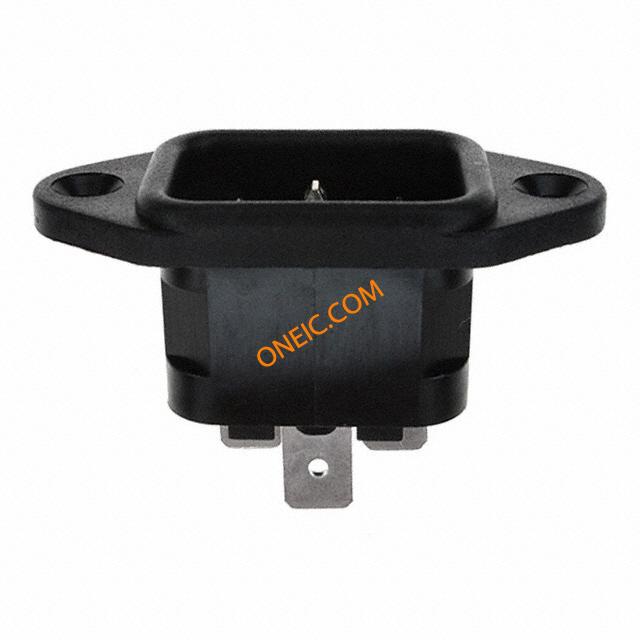

PX0580/63
| 制造商 | |
| 描述 | CONN AC INLET 6.3MM TAB FLNG MNT C14 Male Straight Panel Mount IEC Connector, Rated At 10A, 250V ac AC Power Entry Modules SC MOUNT .25 FASTON Conn Power M 3 POS ST Panel Mount 3 Terminal 1 Port INLET, IEC, 6.35MM, TAB PowerInlet;IEC320-1;FlangeMount;6.3mmTab;Black;15A,250VAC(UL/CSA) Connector: IEC 60320,AC mains; C14 (E); socket; male; 10A; 250VAC Flush-type device plug C14 Screw mounting, PX0580/63, Bulgin Bulgin C14 面板安装 直向 插头 IEC 插头, 额定10A, 250 V 交流 |
| 分类 |
商业参数
| 产品 | Inlets | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :BS, CSA, SEMKO, IMQ, VDE, UL |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 10A | 电压 | 250V |
| 滤波器类型 | No | 额定电压 | 250 V ac |
| 开关功能 | Not Switched | 最大额定电流 | 10A |
| 连接器类型 - 电压输入 | C14 (E) | ||
机械参数
| 重量 | 0.015 | 交流输出口 | :1 |
| 端接方式 | :Solder / Screw | 基体材料 | polyamide |
| 安装类型 | Panel Mount, Screw Hole | 端子类型 | :6.35mm x 0.8mm |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Tin |
| 安装样式 | Flange | 连接器样式 | IEC 320-C14 |
| 保险丝座类型 | Drawer Not Required | 壳体材料 | Nylon |
| 包装数量 | 100 | 连接器 - 电缆 | C14 |
| 端接样式 | Quick Connect - 0.250" (6.3mm) | 接触件端接 | :Quick Connect |
| 位数 | 3 | 安装孔间距 | 40mm |
| 安装孔直径 | :3.5mm | 安装面板厚度 | :40mm |
| 外壳与棱镜材料 | :Black nylon | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 100 | 带保险丝 | No |
| 连接器性别 | Male | 系列 | :- |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | - 40 C to + 70 C | ||
文档与媒体
相关型号
11328
Bulgin
AC Power Entry Modules INSULATION BOOT INSULATION BOOT BLACK IEC connector insul boot,46x29.8x22.2mm Connector Accessories Insulation Boot Polyvinyl Chloride Bulgin 绝缘套管 绝缘罩, 29.8 x 46 x 22.2mm
KT0006
Bulgin
Cable Mounting & Accessories RETAINER CLIP ASMBL CLIP RETAINER FOR POWER PLUG IEC connector retaining clamp kit,KT0006 Connector Accessories Retaining Clip Stainless Steel RETAINING CLIP, IEC CONN IECRETAININGCLIP Spring clip; Application: PX0580,PX0587,PX0675,PX0686 Circlip, 43 mm, KT0006, Bulgin Bulgin 固定夹 固定夹

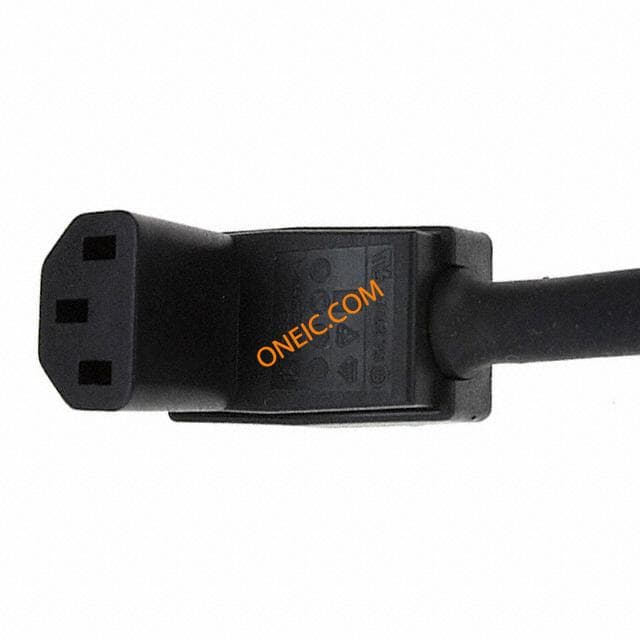

PX0588
