PX0413/03P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 3 POLE R/PANEL MOUNT CONN HSNG RCPT JAM NUT 3POS PIN 3 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series PLUG, CHASSIS, 3 WAY 400SERIESBUCCANEERSEALEDREARPANELMOUNTCONNECTORPLUG3PIN8AMPS Bulgin Buccaneer 系列 3路 面板安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250 V ac/dc | 最大额定电流 | 8A |
机械参数
| 重量 | 0.012 | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 触头类型 | Crimp and Solder Cup | 安装类型 | Panel Mount, Bulkhead - Front Side Nut |
| 连接器类型 | Receptacle for Male Contacts | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 插入角度 | :- | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide (PA) |
| 主要材料 | Sealed | 第一触头极性 | Male |
| 触点数 | 3 | 位数 | 3 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :7mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | PanelPlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 制造商全称 | 400Series | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
文档与媒体
相关型号

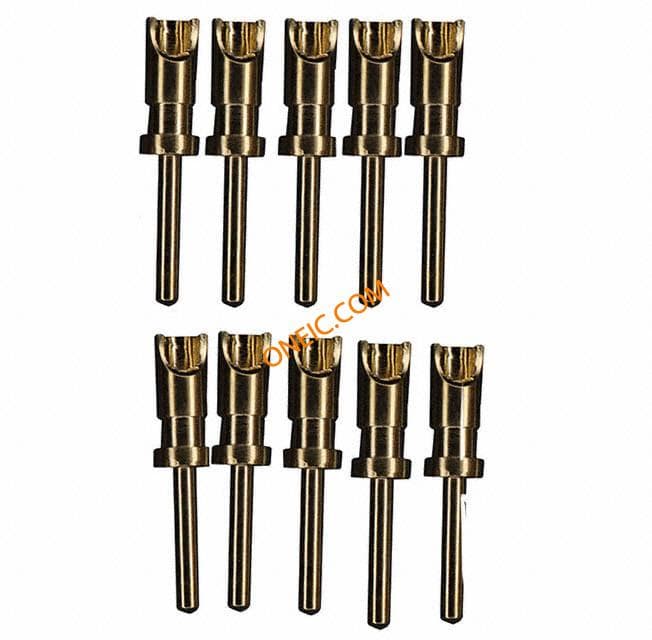

SA3350/1
Bulgin
Standard Circular Contacts SOLDER PIN 2&3P AWG 1 = 1 PKT of 10/pcs CONT PIN 8A SLD 20-24AWG 1=10PC 8A solder pin contact,20-24awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 20-24AWG, SOLDER Contacts,Solder,Pin,2and3Pole Contact; male; 20÷24AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for , 2 and 3-pole, SA3350/1, Bulgin Bulgin 400 系列 8A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 24 → 20 AWG 线规格
PX0410/03S/5055
Bulgin
Standard Circular Connector 3 POLE FLEX SKT 5.0-5.5MM YELLOW CONN HSNG PLUG CABLE 3POS SOCKET Conn Buccaneer SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port
PX0410/03S/5560
Bulgin
Standard Circular Connector 3 POLE FLEX SKT CONN HSNG PLUG CABLE 3POS SKT 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CIRCULAR, RECEPTACLE, 3 WAY, CABLE CONN HSNG PLUG INLINE 3POS SKT CONNECTOR,SEALED,CABLE,3CONTACTS,8A,SOCKETS Connector: circular; plug; female; PIN:3; w/o terminals; for cable Cable socket Buccaneer 400, 3-pole 3, PX0410/03S/5560, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 , 母触点
PX0484
Bulgin
Standard Circular Connector Sealing Cap CONN CAP SEALING FOR PX0413 Sealing cap Type 4 Micro Buccaneer Connector Accessories Sealing Cap SEALING CAP, POLYAMIDE SealingCap;PCBandrearpanelmount;IP68;400Series

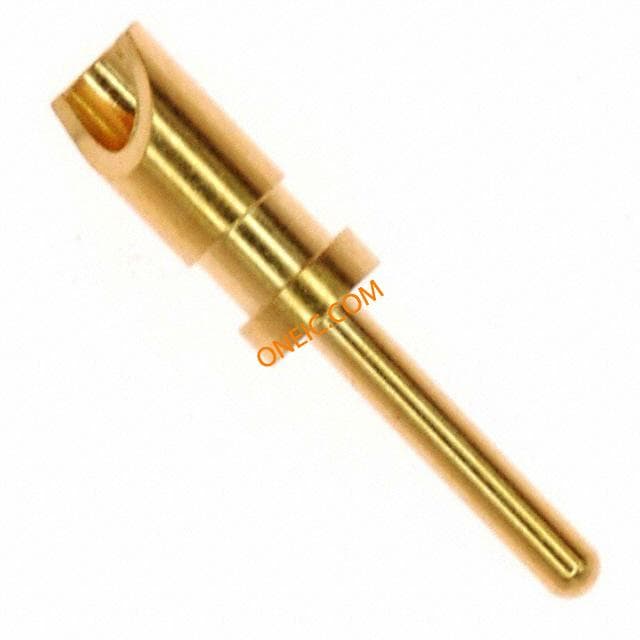

SA3350
