MPI002/28/AM
| 制造商 | |
| 描述 | SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring amber,IP66 Pushbutton Switches AMBER DOT SOLDER LUG Switch Push Button SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount SWITCH, ILLUM AMBER Switch,RingIlluminated;Amber;S.P.PushtoMake;50mA;24VDCMax;2.8mmSolderTabs Bulgin SP 按钮开关, 0.05 A@ 24 V 直流 |
| 分类 |
商业参数
| 产品类别 | Pushbutton Switches | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85365080 | ||
电气参数
| 电路 | SPST-NO | 操作方式 | PushtoMake |
| 所用LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. | 额定电压 | 24V |
| 极数 | 1 | 开关功能 | Off-Mom |
| 接触电阻 | :100mohm | 介电强度 | >2kV(ContacttoPanel),1500V(ContacttoContact) |
| LED正向电压 | :2V | 最大额定电流 | 50mA (DC) |
| 最大触点电流 | :50mA | 绝缘电阻 | :1000Mohm |
| 开关功能/额定值 | :Off-(On) | 触点额定电流 | 0.05 A @ 24 V dc |
| 连接器类型 - 电压输入 | :Connector | 供电电压 (Vcc/Vdd) | :24V |
| 标称照明电压 | 2.3 VDC | ||
机械参数
| 深度 | :28.2mm | 长度 | :32.7mm |
| 重量 | 0.02175 | 直径 | :22mm |
| 包装方式 | Bulk | 端接方式 | SolderLugs |
| 触点形式 | SPST | 致动器类型 | Round, Button, Flush |
| 安装类型 | Panel Mount, Front | 端子类型 | :Connector |
| 安装样式 | Panel | 操作力 | :12N |
| 端接样式 | Quick Connect - 0.110" (2.8mm) | 连接器颜色 | :Amber |
| 照明颜色 | :Amber | 面板开孔形状 | :19.2mm |
| 按钮/帽颜色 | Silver | 安装孔直径 | 19.2mm |
| 典型触点布局 | SP | 面板开孔尺寸（外形） | Circular - 19.20mm Dia |
| 照明类型及颜色 | LED, Amber | ||
产品信息
| 类型 | Vandal Resistant, Illuminated | 系列 | :MPI002 |
| 产品特性 | Stainless Steel | 电气寿命 | 35,000 Cycles |
环境参数
| 机械寿命 | 750,000 Cycles | NEMA 机架尺寸 | :IP66 |
| 防护等级 | IP66 - Dust Tight, Water Resistant | 工作温度 | -30°C ~ 70°C |
| 光通量 @ 电流/温度 | :220mcd | ||
文档与媒体
相关型号

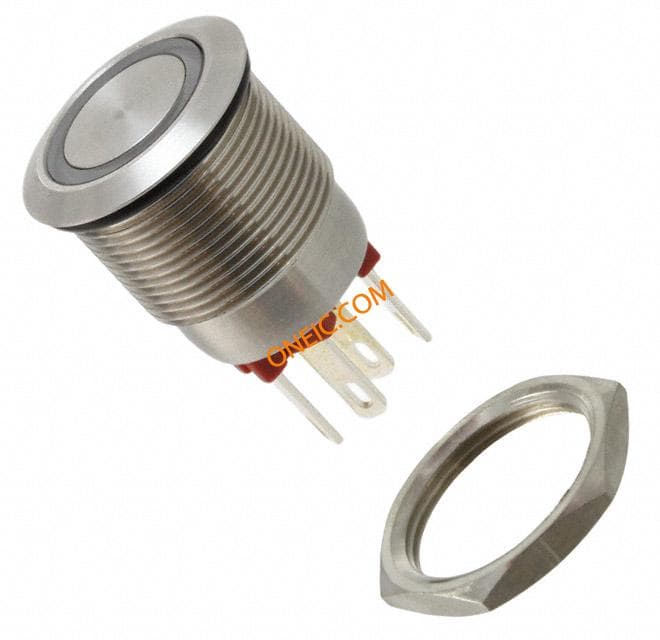

MPI002/28/RD
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring red,IP66 Pushbutton Switches RED RING SOLDER LUG Switch Push Button SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount SWITCH, ILLUM RED Switch,RingIlluminated;Red;SPPushtoMake;50mA;24VDCMax;2.8mmSolderTabs Bulgin SP 按钮开关, 0.05 A@ 24 V 直流

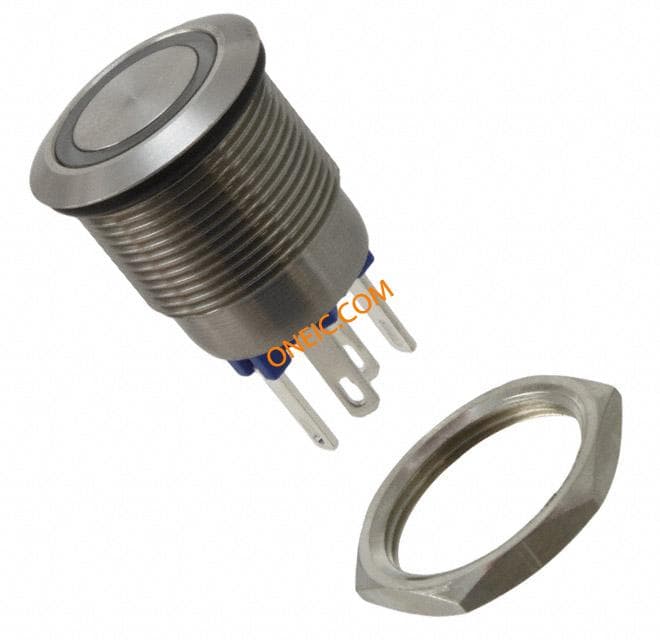

MPI002/28/BL
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring blue,IP66 Switch; Illuminated; BLUE; Solder TAG; RING ILLUMINATION Pushbutton Switches BLU RING SOLDER LUG Switch Push Button SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount SWITCH, VANDAL RESISTANT, BLUE, RING Switch,RingIlluminated;Blue;S.P.PushtoMake;50mA;24VDCMax;2.8mmSolderTabs Bulgin SP 按钮开关, 0.05 A@ 24 V 直流

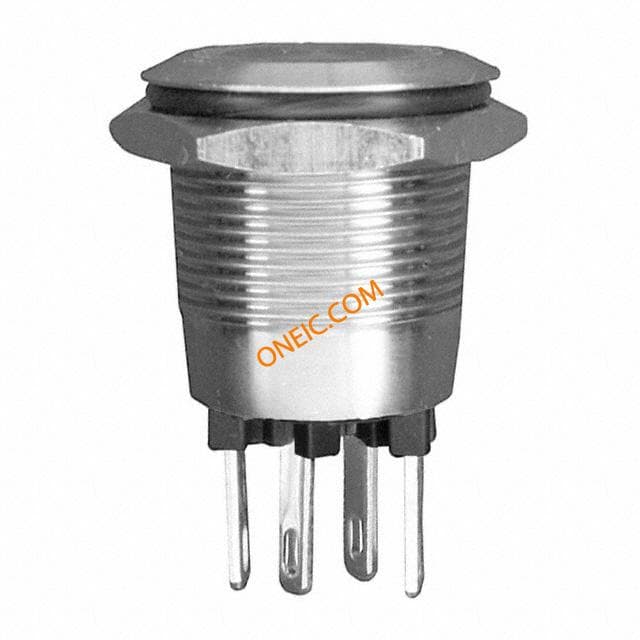

MPI002/28/GN
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring green,IP66 Pushbutton Switches GRN RING SOLDER LUG Switch Push Button SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount SWITCH, ILLUM GREEN Switch,RingIlluminated;Green;SPPushtoMake;50mA;24VDCMax;2.8mmSolderTabs

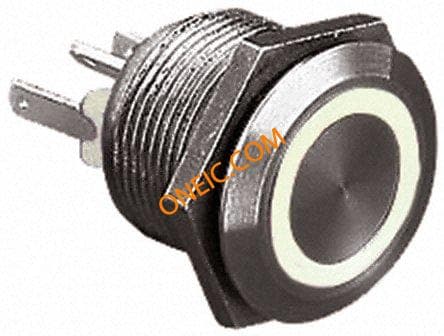

MPI002/28/WH
