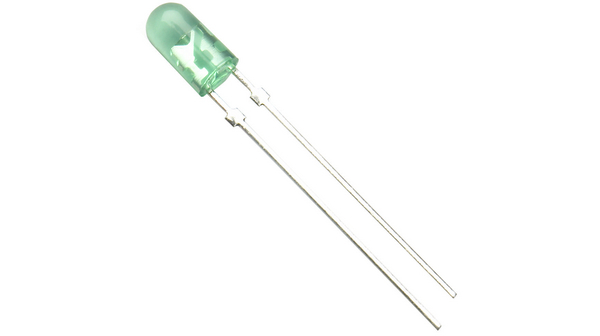

HLMP-C515

制造商	Broadcom Inc.
描述	LED GREEN CLEAR 5MM ROUND T/H LED 5 mm (T13/4) green, HLMP-C515, Broadcom Broadcom 绿色 (570 nm 主波长) LED, , 2.2 V, 170 mcd, 15 °视角 5mm (T-1 3/4) 通孔

对参数有疑问？问 AI 助手

电气参数

LED	1	灯类型	透明
供电电压	3 V	峰值波长	568
主波长	570	通态电流（It (RMS)）（最大）	20

机械参数

透镜尺寸	5 mm (T1¾)	封装体颜色	colourless
发光颜色	green	安装类型	通孔安装
封装形式	clear	透镜样式/尺寸	15 °
包装数量	5mm (T-1 3/4)	尺寸/外形	5 x 8.71mm
触点数	2

产品信息

系列	HLMP-C	光学元件形状	圆形
入射角（AOI）	20

环境参数

工作温度

-20...+100 °C

光通量 @ 电流/温度

170...300 mcd

文档与媒体

在线文档

Datasheet

在线文档

HLMP-Cx15,x17,x23

PDF 文档

95287.pdf
