点击放大查看

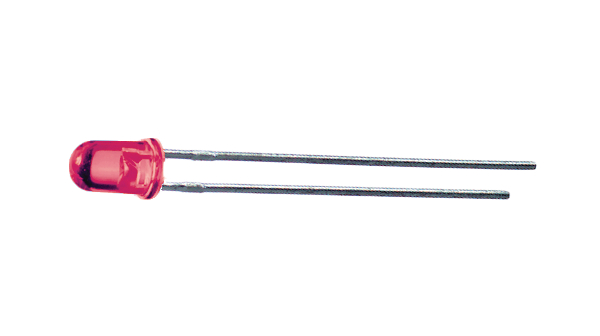

HLMP-1301
| 制造商 | |
| 描述 | LED RED DIFF 3MM ROUND T/H LED 3 mm (T1) red, HLMP-1301, Broadcom Broadcom 红色 (626 nm 主波长) LED , 1.9 V, 3.4 mcd, 60 °视角 3mm (T-1) 通孔 |
对参数有疑问？问 AI 助手
电气参数
| LED | 1 | 灯类型 | 红色 |
| 供电电压 | 1.9 V | 峰值波长 | 635 |
| 主波长 | 635 | 通态电流（It (RMS)）（最大） | 25 |
机械参数
| 透镜尺寸 | 3 mm (T1) | 封装体颜色 | tinted |
| 发光颜色 | red | 安装类型 | 通孔安装 |
| 封装形式 | diffuse | 透镜样式/尺寸 | 60 ° |
| 包装数量 | 3mm (T-1) | 尺寸/外形 | 3 x 4.7mm |
| 触点数 | 2 | ||
产品信息
| 系列 | HLMP | 技术 | GaAsP on GaP |
| 光学元件形状 | 圆形 | 入射角（AOI） | 60 |
环境参数
| 工作温度 | -40...+100 °C | 光通量 @ 电流/温度 | 3.4 mcd |
