3006P-1-104LF
| 制造商 | Bourns, Inc. |
| 描述 | Res Cermet Trimmer 100K Ohm 10% 3/4W 15(Elec)Turn 2.36mm (20.57 X 4.83 X 6.35mm) Pin Thru-Hole Tube Res Cermet Trimmer 100K Ohm 10% 0.75W(3/4W) 15(Elec)Turn 2.36mm (20.57 X 4.83 X 6.35mm) Pin Thru-Hole Tube TRIMMER 100K OHM 0.75W PC PIN 3006P side adj cermet trimmer,100K 19mm Trimmer Resistors - Through Hole 100K 3/4 10% Sealed Multi Turn TRIMMER, 15 TURN 100K Trimmer;Cermet;Rest100Kilohms;PCB;Pwr-Rtg0.75W;Dim0.75InLx0.19InWx0.25InH Potentiometer: mounting; multiturn; 100kΩ; 750mW; ±10%; linear Trimmer Cermet 100 kOhm linear 750 mW, 3006P-1-104LF, Bourns |
| 分类 |
商业参数
| 产品 | Trimmers | 产品类别 | Trimmer Resistors - Through Hole |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85334010 |
| 抗辐射加固 | No | 军用标准 | Not Required |
电气参数
| 容差 | 10 % | 电阻 | 100 KOhm |
| 分辨率 | Infinite | 元件类型 | Cermet |
| 功率（瓦） | 0.75W, 3/4W | 额定功率 | 3/4 W |
| 额定电压 | :400V | 电阻值（欧姆） | 100k |
| 接触电阻 | :1% | 介电强度 | 1000V |
| 击穿电压 | :1000V | 电阻公差 | 100000Ω |
| 绝缘电阻 | 500VDC@100megaohms(Min) | 直流电阻（DCR）（最大） | :100kohm |
机械参数
| 深度 | 4.83mm | 锥度 | Linear |
| 高度 | 6.35mm | 长度 | 20.57mm |
| 扭矩 | 5Oz./in. | 重量 | 0.00113 |
| 直径 | Not Required mm | 包装方式 | Tube |
| 端接方式 | SolderablePins | 引脚直径 | :0.5mm |
| 安装类型 | Through Hole | 端子类型 | :PCB Terminals |
| 安装样式 | Through Hole | 旋转角度 | Wiperidles |
| 轴直径 | 2.36 mm | 总长度 | 20.57 mm |
| 刀片材料 | Cermet | 包装数量 | 25 |
| 尺寸/外形 | Rectangular - 0.750" L x 0.190" W x 0.250" H (19.05mm x 4.83mm x 6.35mm) | 连接器间距 | 12.7x2.54mm |
| 端接样式 | Pin | 导体材料 | cermet |
| 电阻材料 | Cermet | ||
产品信息
| SPG | 25 | 类型 | Trimmer |
| 系列 | 3006P | 技术 | Cermet |
| 失效率 | Not Required | 产品子类型 | Multi-Turn |
| 调节方式 | Side Adjustment | 特性 | linear |
| 电气寿命 | 1000hr | 圈数 | 15(Elec) Turns |
| 单元数量 | 1 | 类型属性 | 19mm |
环境参数
| 开关次数 | 200Cycles | 工作温度 | -55 to 125 °C |
| 温度系数 | ±100ppm/°C | 典型温度系数 | :100ppm/°C |
| 结工作温度 | +125°C | ||
文档与媒体
相关型号

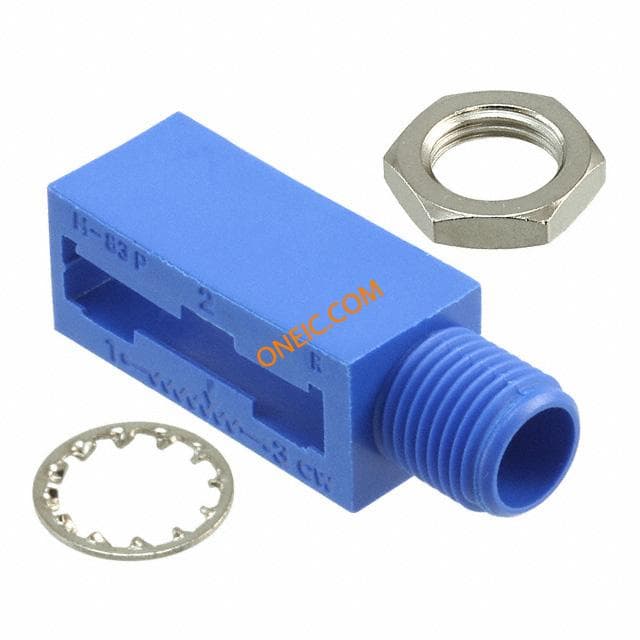

H-83P
