364A795T
| 制造商 | |
| 描述 | RF Connectors BNC R/A 75 OHM PC JK TPX CONN BNC JACK R/A 75 OHM PCB RF Connectors / Coaxial Connectors BNC R/A 75 OHM PC JK TPX BNCR/A75OHMPCJACKTPX |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 75 Ohms | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 1GHz |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 方向 | Right Angle | 基体材料 | Brass |
| 外壳颜色 | White | 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle |
| 外壳镀层 | Valox | 连接器类型 | Jack PCB Mount |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 触头材料 | Phosphor Bronze |
| 端接样式 | Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polypropylene (PP) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Right Angle | ||
产品信息
| 连接器性别 | Receptacle (Female) | 产品特性 | Board Guide |
| 射频系列/标准 | BNC | ||
文档与媒体
相关型号

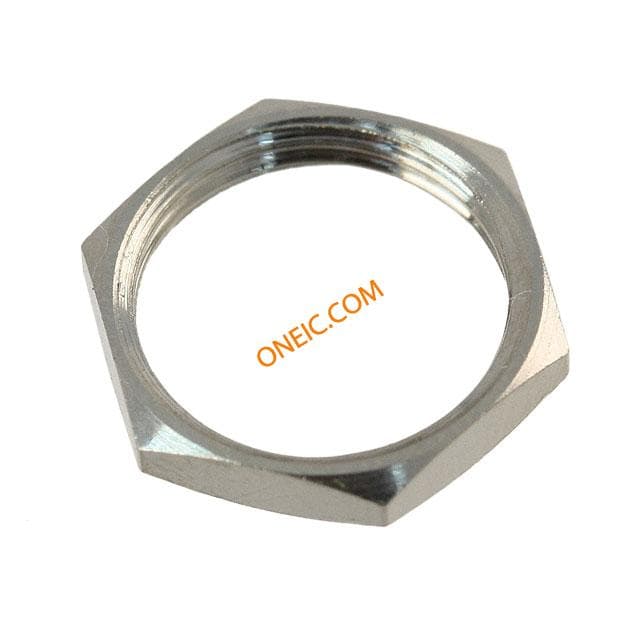

364NT
Bomar Interconnect
スクリューおよびファスナ HARDWARE JAM NUT NUT FOR 364 SERIES Screws & Fasteners HARDWARE JAM NUT Connector Accessories Jam Nut Straight Brass Nickel Finish hardware,jamnutforpanelmounting364-seriesbncpcbjacks CONN JAM NUT FOR BNC JACKS

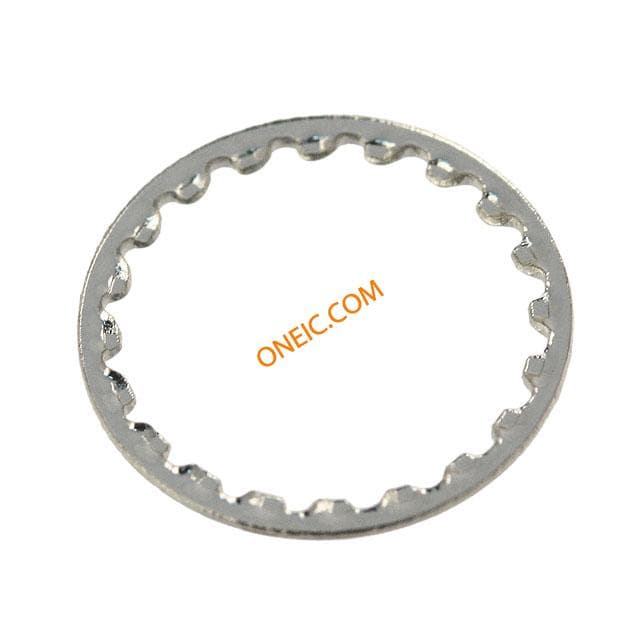

364LW
Bomar Interconnect
Screws & Fasteners HARDWARE LOCK WASHER LOCK WASHER FOR 364 SERIES Connector Accessories Lock Washer Straight Steel Zinc Finish hardware,lockwasherforpanelmounting364-seriesbncpcbjacks CONN LOCKWASHER FOR BNC JACKS

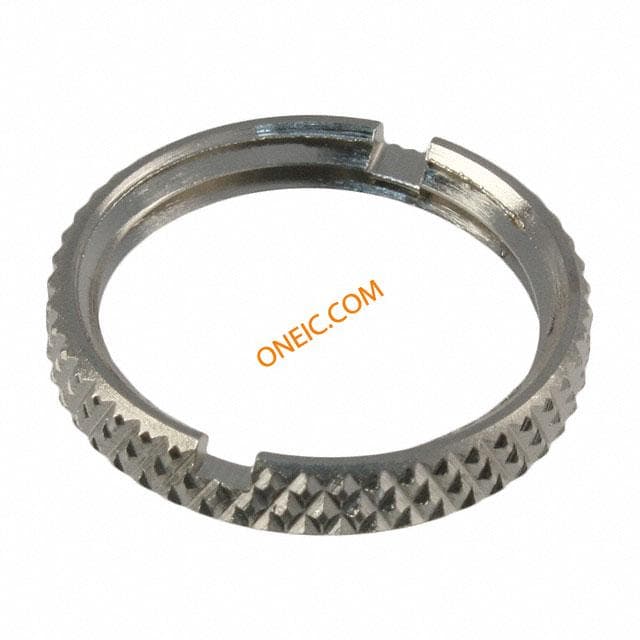

364KNT
Bomar Interconnect
RF Connectors KNURLED BNC NUT KNURLED NUT FOR 364 SERIES CONNECTOR ACCESSORY;HARDWARE;NARROW KNURLED NUT FOR 364-SERIES CONNECTORS Screws & Fasteners KNURLED BNC NUT Connector Accessories Knurled Nut Straight Brass Nickel Finish CONNECTORACCESSORY,HARDWARE,NARROWKNURLEDNUTFOR364-SERIESCONNECTORS
