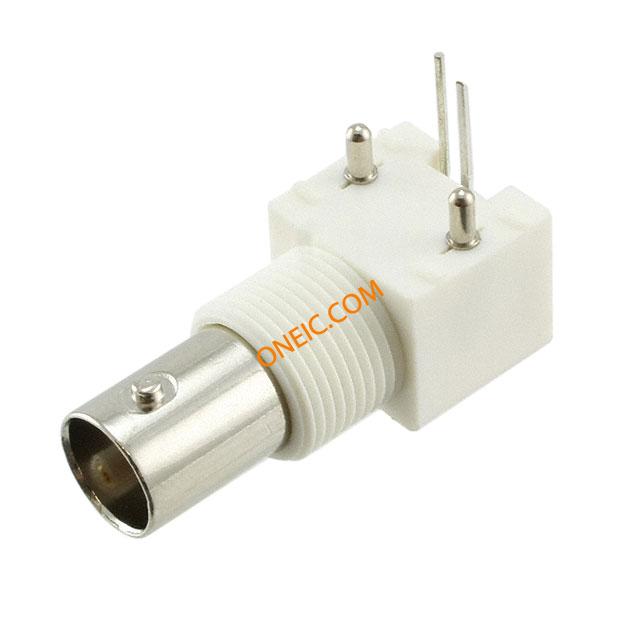

364A795BL
| 制造商 | |
| 描述 | RF Connectors 75 OHM WHITE VALOX CONN BNC JACK R/A 75 OHM PCB RF Connectors / Coaxial Connectors 75 OHM WHITE VALOX Conn BNC F 0Hz to 1GHz 75Ohm Solder RA Thru-Hole Gold Conn;RF;BNC;RightAngle;PCBJack;75Ohms;Body:Whitevalox;CntPlating:Gold |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | 991-1020 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 75 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 1GHz |
| 阻抗（最大）（Zzt） | 75 Ohm | 连接器类型 - 电压输入 | Solder |
机械参数
| 颜色 | White | 包装方式 | Bulk |
| 本体表面处理 | Nickel | 方向 | Right Angle |
| 端接方式 | 2-PinThruHole | 基体材料 | Brass |
| 外壳颜色 | White | 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle |
| 行程角度 | RightAngle | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | WhiteValox | 连接器样式 | BNC |
| 触头材料 | Phosphor Bronze | 主要材料 | BNC |
| 端接样式 | Through Hole | 配接方向 | Bayonet |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polypropylene (PP) | 中心触点镀层工艺 | Gold |
| 外部壳体颜色 | White | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Right Angle | ||
产品信息
| 类型 | PCBJack | 连接器性别 | Jack |
| 产品特性 | Board Guide | 主要用途 | Board Guide |
| 射频系列/标准 | BNC | 输出配置 | Panel Mount, Bulkhead; Through Hole, Right Angle |
环境参数
| 防护等级 | Solder | ||
