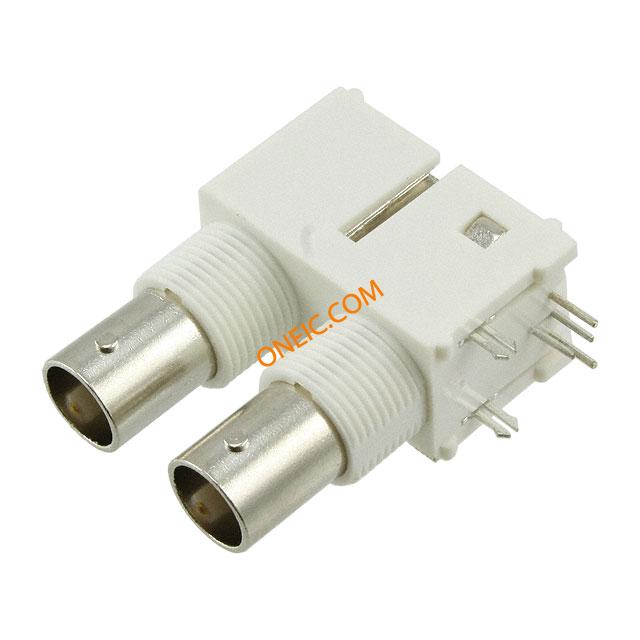

364A2795
| 制造商 | |
| 描述 | RF Connectors 75 OHM DBL WHT VALOX X-2 DUAL STACKED CONN BNC JACK R/A 75 OHM PCB CONNECTOR; RF COAXIAL; DUAL BNC RIGHT ANGLE JACKS; WHITE VALOX; 75 OHM RF Connectors / Coaxial Connectors 75 OHM DBL WHT VALOX X-2 DUAL STACKED Conn Dual Port BNC F/F 0Hz to 1GHz 75Ohm Solder RA Thru-Hole Gold Conn;RF;BNC;RightAngle;PCBJack;75Ohms;Body:WhiteValox;CntPlating:Gold DUAL BNC R/A PCB JACKS 75 OHM |
| 分类 |
商业参数
| 产品 | PCB Receptacles | 其他名称 | 991-1024 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Compliant | 抗辐射加固 | No |
电气参数
| 阻抗 | 75 Ohm | 额定电压 | 500V |
| 最大频率 | 1GHz | ||
机械参数
| 颜色 | White | 包装方式 | Bulk |
| 本体表面处理 | Nickel | 方向 | Right Angle |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | White | 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle |
| 行程角度 | RightAngle | 连接器类型 | Jack, Female Sockets - Dual |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | WhiteValox | 安装样式 | Through Hole |
| 连接器样式 | BNC | 触头材料 | Phosphor Copper |
| 主要材料 | BNC | 端接样式 | Solder |
| 配接方向 | Bayonet | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polypropylene (PP) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Right Angle | ||
产品信息
| 类型 | Dual Port BNC | 连接器性别 | Jack |
| 连接类型 | PCB | 射频系列/标准 | BNC |
| 应用细节 | Commercial | ||
