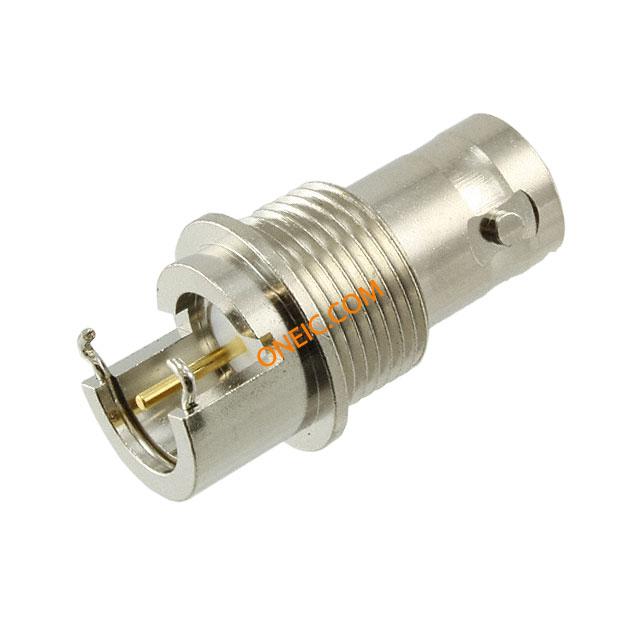

361V504EFT
| 制造商 | |
| 描述 | RF Connectors BNC V-BITE W/FLG 50 OHM CONN BNC JACK 50 OHM EDGE MNT RF Connectors / Coaxial Connectors BNC V-BITE W/FLG 50 OHM Conn BNC F 0Hz to 4GHz 50Ohm Solder ST Edge Mount Gold JACK BNC, PCB, LAUNCHER Conn;RF;BNC;Straight;PCBJack;EdgeMount;50Ohms;Brass/Nickel;Cnt:Phos./Gold |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | 991-1035 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 80 |
| 工厂包装数量 | 80 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85366910 |
| 抗辐射加固 | No | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.0001 | 包装方式 | Tray |
| 电缆类型 | :- | 本体表面处理 | Nickel |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Board Edge, End Launch | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 安装样式 | Edge |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 触头材料 | Phosphor Bronze | 壳体材料 | Brass |
| 主要材料 | BNC | 端接样式 | Solder |
| 配接方向 | Bayonet | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Teflon | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | BNC | 连接器性别 | Jack |
| 系列 | :V-Bite | 连接类型 | PCB |
| 射频系列/标准 | BNC | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 200°C | ||
文档与媒体
相关型号

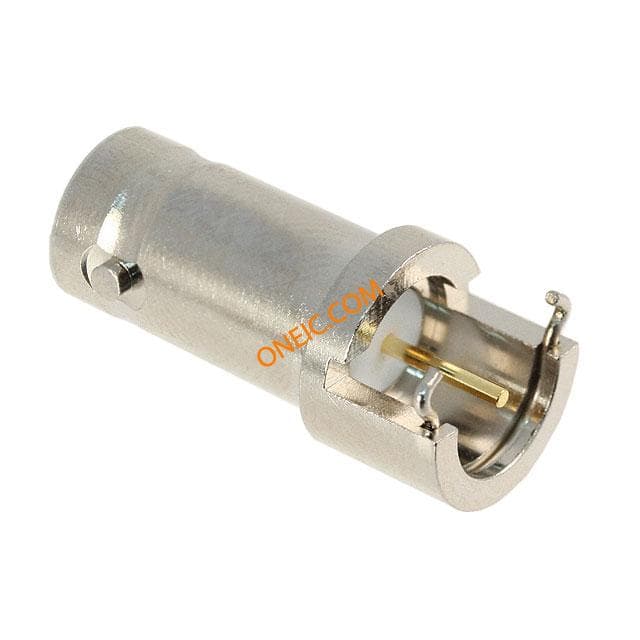

361V504ER
Bomar Interconnect
RF Connectors 50 OHM BNC V-BITE CONN BNC JACK 50 OHM EDGE MNT CONNECTOR;RF COAXIAL;V-BITE BNC JACK RECEPTACLE;PCB EDGE MOUNT;50 OHM;FOR REFLOW RF Connectors / Coaxial Connectors 50 OHM BNC V-BITE Conn BNC F 0Hz to 4GHz 50Ohm Solder ST Edge Mount Gold JACK BNC, PCB, LAUNCHER Conn;RF;BNC;Straight;PCBJack;EdgeMount;50Ohms;Body:Brass/Nickel;Cnt:Phos./Gold BNC V-BITE FOR REFLOW SOLDERING
361V504ET
Bomar Interconnect
RF Connectors 50 OHM BNC V-BITE CONN BNC JACK 50 OHM EDGE MNT RF Connectors / Coaxial Connectors 50 OHM BNC V-BITE Conn BNC F 0Hz to 4GHz 50Ohm Solder ST Edge Mount Gold JACK BNC, PCB, LAUNCHER Conn;RF;BNC;Straight;PCBJack;EdgeMount;50Ohms;Body:Brass/Nickel;Cnt:Phos./Gold BNC V-BITE, 50, THREADED, TFE/GOLD

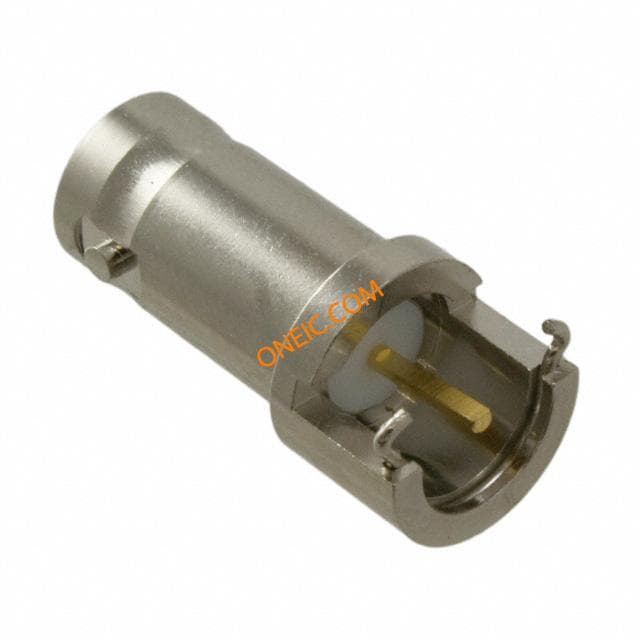

361V704ER
Bomar Interconnect
RF Connectors 75 OHM BNC V-BITE CONN BNC JACK 75 OHM EDGE MNT RF Connectors / Coaxial Connectors 75 OHM BNC V-BITE Conn BNC F 0Hz to 1GHz 75Ohm Solder ST Edge Mount Gold Conn;RF;BNC;Straight;PCBJack;EdgeMount;75Ohms;Body:Brass/Nickel;Cnt:Phos./Gold BNC V-BITE,75 OHM,TEFLON,GOLD PIN

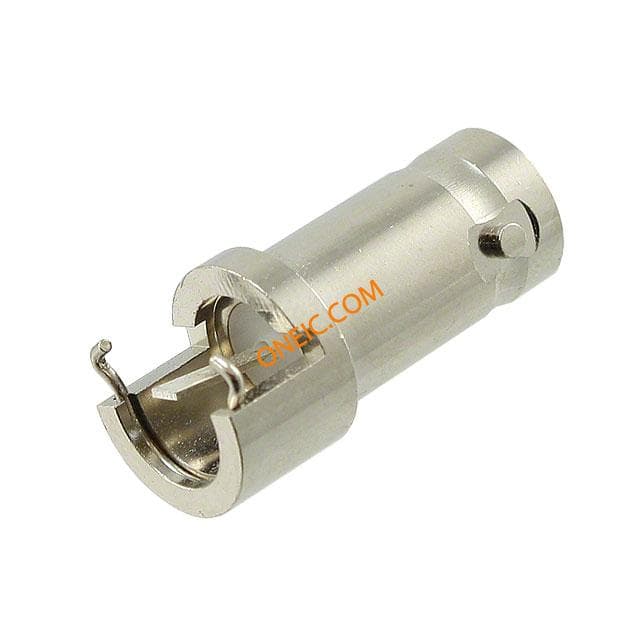

361V509E
