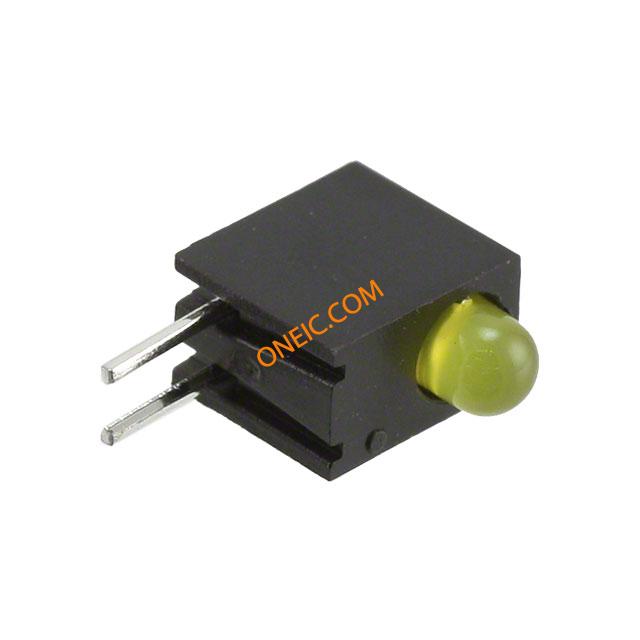

H101CYD
| 制造商 | |
| 描述 | LED Circuit Board Indicators CBI Yellow 585nm Sing Level 3mm LED YELLOW 590NM PC MOUNT |
| 分类 |
商业参数
| 其他名称 | 492-1294 | 产品类别 | LED Circuit Board Indicators |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 | 20mA | 光学尺寸 | 3 mm |
| 波长 | 590 nm | 视角 | 45 deg |
| 额定电压 | 2V | 峰值波长 | 590nm |
| LED正向电流 | 20 mA | LED正向电压 | 2 V |
| 毫坎德拉等级 | 20mcd | 最大额定电流 | 20mA |
| 平均球面烛光（MSCP） | 20mcd | ||
机械参数
| 颜色 | Yellow | 包装方式 | Tray |
| 安装类型 | Through Hole | 透镜样式/尺寸 | Round with Domed Top, 3mm |
| 照明颜色 | Yellow | ||
产品信息
| 透镜类型 | Diffused | 配置 | Single |
| 每IC通道数 | Single | 输出配置 | Through Hole |
环境参数
| 光通量 @ 电流/温度 | 20 mcd | ||
