208477096008025
| 制造商 | |
| 描述 | Conn DIN 41612 F 96 POS 2.54mm Solder RA Thru-Hole CONNECTOR RECEPT 96POS R/A DIN 41612 Connectors 96POS RECEPT R/A |
| 分类 |
商业参数
| 产品类别 | DIN 41612 Connectors | 标准包装数量 | 500 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 接触电阻 | 20 | 最大额定电流 | 3A |
机械参数
| 间距 | 0.100" (2.54mm) | 高度 | 10.5 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 排数 | 3 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 93.9 | 触点数 | 96 |
| 位数 | 96 | 绝缘材料 - 材质 | Polyester Thermoplastic, Glass Filled |
产品信息
| 类型 | DIN 41612 | 样式 | R |
| 连接器性别 | F | 系列 | 8477 |
| 加载位置数 | All | ||
环境参数
| 级别、等级 | 2 | 工作温度 | -65°C ~ 125°C |
文档与媒体
相关型号
108477096007025
AVX Connectors
DIN 41612 Connectors 96POS HDR INVRTD STR CONN HEADER INVRTD 96POS STR
108477096010025
AVX Connectors
DIN 41612 Connectors 96POS HDR INVRT CONN HEADR INVRT 96POS SOLD LOOP
128477096007049
AVX Connectors
DIN 41612 コネクタ 96POS HDR INVRT STR CONN HEADER INVRT 96POS STR DIN 41612 Connectors 96POS HDR INVRT STR
168477096002025
AVX Connectors
DIN 41612 Connectors 96POS HEADER STR CONNECTOR HEADER 96POS STR
108477096009025
AVX Connectors
DIN 41612 コネクタ 96POS HDR INVRT CONN HEADR INVRT 96POS SOLD HOLE DIN 41612 Connectors 96POS HDR INVRT
108477096001049
AVX Connectors
DIN 41612 Connectors 96POS HDR INVRTD STR CONN HEADER INVRTD 96POS STR
128477096001025
AVX Connectors
DIN 41612 Connectors 96POS HDR INVRT STR CONN HEADER INVRT 96POS STR
108477096002025
AVX
Conn DIN 41612 M 96 POS 2.54mm Solder ST Thru-Hole CONN HEADER INVRTD 96POS STR DIN 41612 Connectors 3 X 96 MALE STRAIGHT Inverted

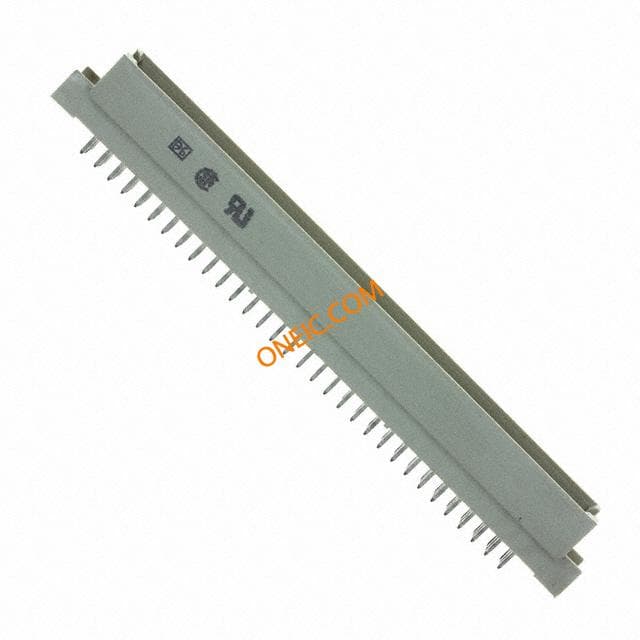

108477096001025
