点击放大查看

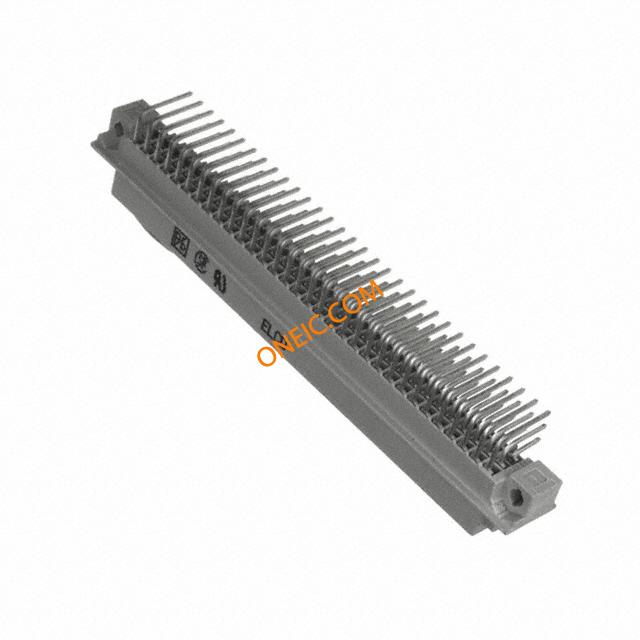

208477096002025
| 制造商 | |
| 描述 | Conn DIN 41612 F 96 POS 2.54mm Solder RA Thru-Hole CONN DIN RECEPT R/A 96POS 3ROWS DIN 41612 Connectors 3 X 96 FEMALE R.A. Inverted |
| 分类 |
商业参数
| 其他名称 | 478-1949 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 540 | 工厂包装数量 | 90 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 3A |
机械参数
| 间距 | 0.100" (2.54mm) | 高度 | 10.5 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 尾部长度 | 3 mm | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 3 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 93.9 mm | 端接样式 | Solder |
| 触点数 | 96 | 位数 | 96 |
| 绝缘材料 - 材质 | Polyester Thermoplastic, Glass Filled | ||
产品信息
| 类型 | DIN 41612 | 样式 | R |
| 连接器性别 | F | 系列 | 8477 |
| 产品子类型 | Receptacles | 加载位置数 | All |
环境参数
| 级别、等级 | 2 | 工作温度 | -65°C ~ 125°C |
