点击放大查看

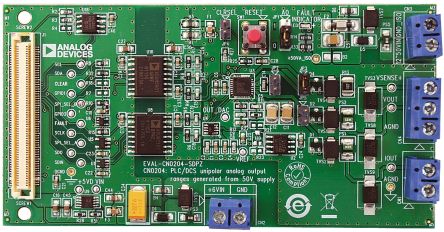

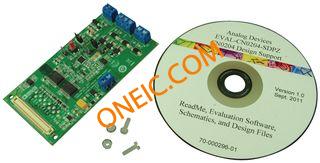

EVAL-CN0204-SDPZ
| 制造商 | |
| 描述 | Evaluation Board For High Precision Impedance Converter BOARD CFTL AD5662 AD5751 Other Development Tools CftL CN0204 Eval BRD AD5751, PLC / DCS, ANALOG OUTPUT MOD Analog Devices 评估测试板 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | EVALCN0204SDPZ |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423990 | ||
电气参数
| 接口 | 120 pin connectors | 供电电压 | 6 V, +/- 25 V |
| 元件数量 | :ADuM5401 | ||
机械参数
| 重量 | 0.97 | 包装方式 | Bulk |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 产品特性 | :On-chip Output Fault Detection, CRC Checking to Prevent Packet Error, Flexible Power-up Options |
| 功能 | Flexible, High Voltage, High Accuracy, Low Drift PLC/DCS Analog Output Module | 套件类型 | :Power Management |
| 套件内容 | :- | 主要用途 | Reference Design, Analog Output Module |
| 工具类型/特性 | AD5751, AD5662, ADR444, ADuM5401, ADuM1301 | 主要特性 | Isolated |
| 使用的IC/零件 | AD5662, AD5751, ADuM1301, ADuM5401 | 芯片组制造商 | :Analog Devices |
| 应用细节 | :- | 适用产品/相关产品 | EVAL-SDP-CB1Z |
文档与媒体
相关型号
SN74LVC1G07DBVR
texas instruments
Buffer/Driver 1-CH Non-Inverting Open Drain CMOS 5-Pin SOT-23 T/R IC BUFF/DVR NON-INVERT SOT23-5 Buffers & Line Drivers Single w/ OD IC, NON INVERTING BUFFER, SOT-23-5 Single Buffer/Driver With Open-Drain Output Logic IC SOT-23-5, SN74LVC1G07, SN74LVC1G07DBVR, Texas Instruments Texas Instruments 74LVC 系列 漏极开路 非反相 缓冲器/驱动器 , 5针 SOT-23封装
SN74LVC1G125DCKR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-70 T/R IC BUS BUFF TRI-ST N-INV SC705 SN74LVC1G125DCKR, 1-Bit Buffer, Line Driver, LVC, 3-State Non-Inverting 1.65 to 5.5V 5-Pin SC-70 BUFFER GATE, SINGLE, SMD, SC-70-5 IC, BUFFER, NON-INVERT, SC-70-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SC-70-5, SN74LVC1G125, SN74LVC1G125DCKR, Texas Instruments LVC, 1-Bit 三态 非反相 缓冲器，线路驱动器, 5针 SC-70封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE

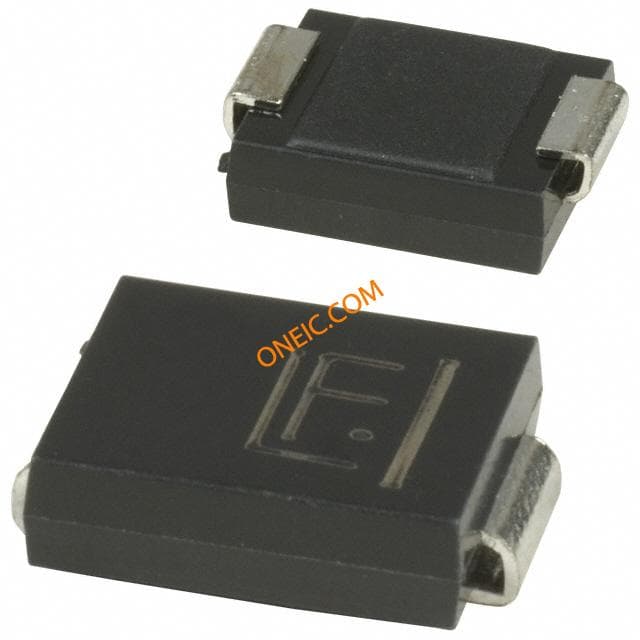

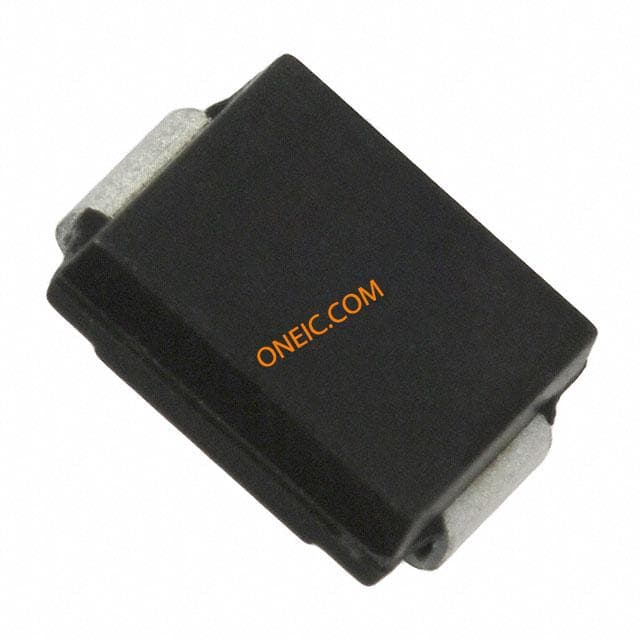

SMCJ64CA
