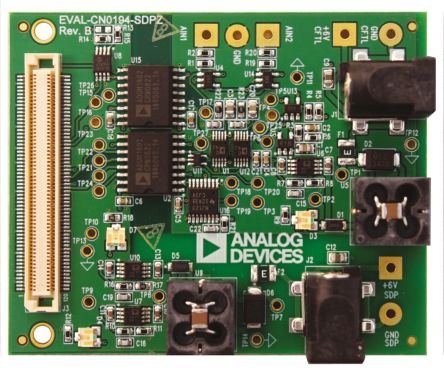

EVAL-CN0194-SDPZ
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For 16-Bit Nano DAC BOARD CFTL AD7685 Data Conversion IC Development Tools CftL CN0194 Eval BRD AD7685, ADUM1402, DAS, EVAL BOARD Analog Devices 评估测试板 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | EVALCN0194SDPZ |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
电气参数
| 接口 | Serial | 供电电压 | 2.3 V to 5.5 V |
| 元件数量 | :ADuM1402 | ||
机械参数
| 重量 | 0.97 | 包装方式 | Bulk |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 产品特性 | :- |
| 功能 | Galvanically isolated, 2-Channel, 16-Bit, simultaneous sampling, daisy-chained data acquisition system | 套件类型 | :Data Acquisition |
| 套件内容 | :- | 主要用途 | Reference Design, Isolated Data Acquisition System |
| 工具类型/特性 | CN0194 | 使用的IC/零件 | AD7685, AD8615, ADuM1402 |
| 芯片组制造商 | :Analog Devices | 应用细节 | :- |
| 适用产品/相关产品 | CN0194 | ||
文档与媒体
相关型号

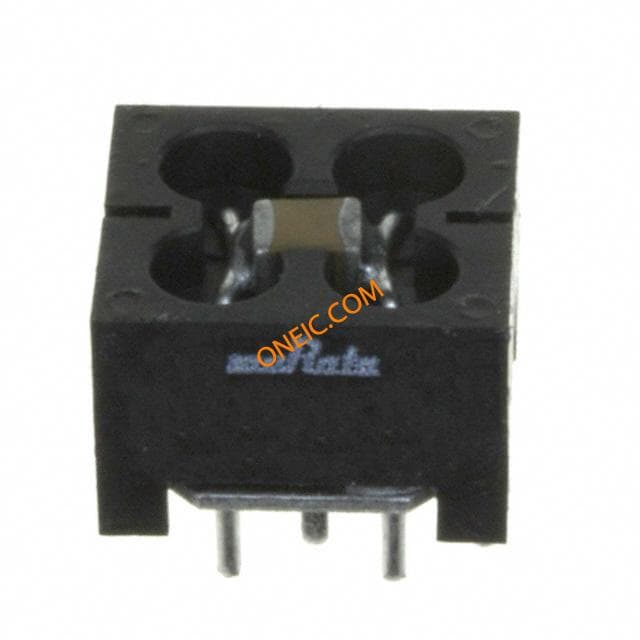

BNX016-01
