点击放大查看

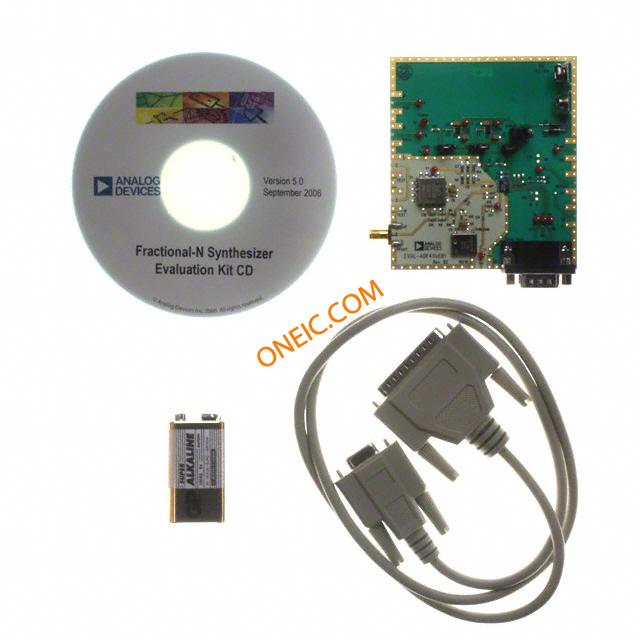

EVAL-ADF4154EBZ1
| 制造商 | |
| 描述 | Evaluation Board For FractionalN Pll Frequency Synthesizer BOARD EVALUATION FOR ADF4154EB1 Clock & Timer Development Tools EVAL BRD ADF4154 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 4 GHz | 接口 | Parallel |
| 供电电流 | 20 mA | 供电电压 | 9 V |
机械参数
| 包装方式 | Bulk | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Cable, Software |
| 嵌入式 | No | 功能 | Designed to allow the user to evaluate the performance of the ADF4154 Frequency Synthesizer for phase locked loops |
| 主要用途 | Timing, Frequency Synthesizer | 工具类型/特性 | ADF4154 |
| 主要特性 | Single Fractional-N PLL | 射频系列/标准 | ADF4154 |
| 使用的IC/零件 | ADF4154 | 次要特性 | 19.2MHz PFD, Graphical User Interface |
| 适用产品/相关产品 | ADF4154 | ||
文档与媒体
相关型号
ADF4154BRUZ
analog devices
PLL Frequency Synthesizer Single 16-Pin TSSOP FRACTIONAL-N FREQUENCY SYNTHESIZER IC FRAC-N FREQ SYNTH 16-TSSOP ADF4154BRUZ, PLL Frequency Synthesizer, 16-Pin CP 20 1 Phase Locked Loops - PLL Fractional-N Freq Synthesizer FREQUENCY SYNTHESIZER, 4GHZ, TSSOP-16 Analog Devices 频率合成器 , 16针 CP 20 1封装
ADF4154BCPZ
analog devices
PLL Frequency Synthesizer Single 20-Pin LFCSP EP FRACTIONAL-N FREQUENCY SYNTHESIZER IC FRACTION-N FREQ SYNTH 20LFCSP ADF4154BCPZ, PLL Frequency Synthesizer, 20-Pin CP 20 1 Phase Locked Loops - PLL Fractional-N Freq Synthesizer
ADF4154BRU-REEL
analog devices
PLL Frequency Synthesizer Single 16-Pin TSSOP T/R IC FRACTION-N FREQ SYNTH 16TSSOP Phase Locked Loops - PLL Fractional-N Freq Synthesizer
ADF4154BRUZ-RL7
analog devices
PLL Frequency Synthesizer Single 16-Pin TSSOP T/R FRACTIONAL-N FREQUENCY SYNTHESIZER IC FRACTION-N FREQ SYNTH 16TSSOP Phase Locked Loops - PLL Fractional-N Freq Synthesizer
ADF4154BRUZ-RL
analog devices
PLL Frequency Synthesizer Single 16-Pin TSSOP T/R Clock Synthesizer 500MHz to 4GHz 16-Pin TSSOP T/R IC FRACTION-N FREQ SYNTH 16TSSOP Phase Locked Loops - PLL Fractional-N Freq Synthesizer
ADF4154BRU-REEL7
analog devices
PLL Frequency Synthesizer Single 16-Pin TSSOP T/R FRACTIONAL-N FREQUENCY SYNTHESIZER IC FRACTION-N FREQ SYNTH 16TSSOP Phase Locked Loops - PLL Fractional-N Freq Synthesizer
ADF4154BCPZ-RL7
analog devices
PLL Frequency Synthesizer Single 20-Pin LFCSP EP T/R FRACTIONAL-N FREQUENCY SYNTHESIZER IC FRACTION-N FREQ SYNTH 20LFCSP Phase Locked Loops - PLL Fractional-N Freq Synthesizer
ADF4154BCPZ-RL
analog devices
PLL Frequency Synthesizer Single 20-Pin LFCSP EP T/R FRACTIONAL-N FREQUENCY SYNTHESIZER IC FRACTION-N FREQ SYNTH 20LFCSP Phase Locked Loops - PLL Fractional-N Freq Synthesizer
ADF4154BRU
analog devices
PLL Frequency Synthesizer Single 16-Pin TSSOP FRACTIONAL-N FREQUENCY SYNTHESIZER IC FRAC-N FREQ SYNTH 16-TSSOP Phase Locked Loops - PLL Fractional-N Freq Synthesizer
