点击放大查看

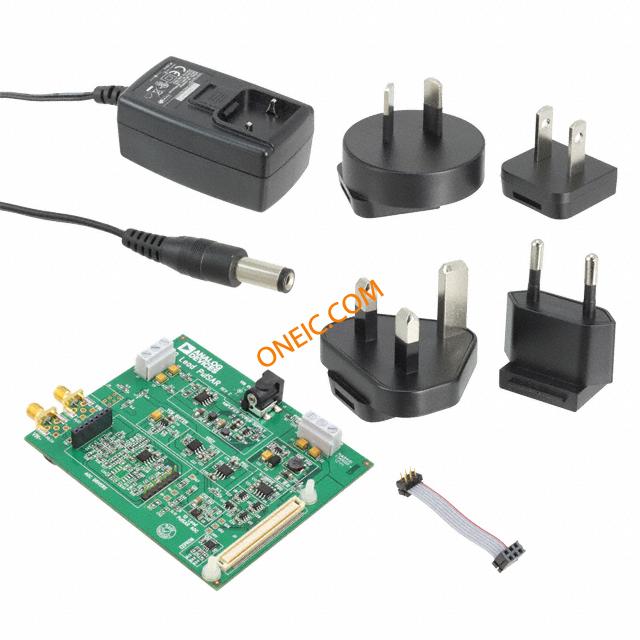

EVAL-AD7685SDZ
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For A 16 Bit, Charge Redistribution Successive Approximation BOARD EVAL FOR AD7685 Data Conversion IC Development Tools EVAL-AD7685 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | EVALAD7685SDZ |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接口 | SPI | 输入范围 | ±VREF |
| 数据接口 | Serial | 位数 | 16 |
| 供电电压 | 2.3 V to 5.5 V | ADC/DAC 数量 | 1 |
| 典型功耗（条件） | 10mW @ 250kSPS | 采样率（每秒） | 250k |
机械参数
| 包装方式 | Bulk | ||
产品信息
| 类型 | ADC | 系列 | AD7685 |
| 内容 | Board, Power Supply | 工具类型/特性 | AD7685 |
| 使用的IC/零件 | AD7685 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
