点击放大查看
ADT7410TRZ
| 制造商 | Analog Devices, Inc. |
| 描述 | Temp Sensor Digital Serial (I2C) 8-Pin SOIC N T/R IC SENSOR TEMP 16BIT I2C 8SOIC Temperature Sensor 0.5C 16-Bit I2C SOIC8 Board Mount Temperature Sensors 0.5 Deg C Accurate 16-Bit Digital I2C SENSOR, TEMP, 16BIT, +/-0.5DEG, 8SOIC Temperature sensor SOIC-8N, ADT7410TRZ, Analog Devices Analog Devices , 16 位 温度传感器, ±0.5°C, 串行 - I2C接口, 8针 SOIC封装 |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 98 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 抗辐射加固 | No | ||
电气参数
| 精度 | ±0.5 °C | 接口 | Serial (I2C) |
| 输出风扇 | No | 分辨率 | 15+Sign Bit |
| 输出类型 | Digital | 传感器类型 | Internal |
| 感应范围 | :-55°C to +150°C | 位数 | 16 bit |
| 额定电压 | 2.7 V | 输出电流 | 230 uA |
| 供电电压 | 2.7 to 5.5 V | 数字I/O线数 | 2-Wire, I2C, SMBus |
| 分辨率（位） | :16bit | 最小供电电压 | 5.5 V |
机械参数
| 宽度 | 4mm | 高度 | 1.75mm |
| 长度 | 5mm | 重量 | 0.0001 |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 触点时序 | :± 0.5°C |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC N | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | SOIC N |
| 尺寸/外形 | 5 x 4 x 1.75mm | 位数 | 8 |
| 供应商器件封装 | 8-SOIC N | ||
产品信息
| 系列 | ADT7410 | 功能 | Temp Sensor |
| 拓扑 | ADC (Sigma Delta), Oscillator, Register Bank | 基本单元 | :7410 |
| 输出报警 | No | 配置 | Local |
环境参数
| 感应温度 | -55°C ~ 150°C | 工作温度 | -55°C ~ 150°C |
| 本地感温 | :-55°C | 结工作温度 | 150C |
文档与媒体
相关型号
ADSP-BF561SBBCZ-5A
analog devices
DSP Fixed-Point 16-Bit 500MHz 500MIPS 256-Pin CSP-BGA IC DSP CTRLR 32B 500MHZ 256CPBGA Blackfin Symmetric Multi-Proc 500MHz BGA Digital Signal Processors & Controllers - DSP, DSC Blackfin Symmetric Multi-Processor Analog Devices Blackfin 系列 32bit 数字信号处理器, 500MHz, 16 位 ROM ROM, 328 kB RAM, 256针 BGA封装
ADT7410TRZ
analog devices
Temp Sensor Digital Serial (I2C) 8-Pin SOIC N T/R IC SENSOR TEMP 16BIT I2C 8SOIC Temperature Sensor 0.5C 16-Bit I2C SOIC8 Board Mount Temperature Sensors 0.5 Deg C Accurate 16-Bit Digital I2C SENSOR, TEMP, 16BIT, +/-0.5DEG, 8SOIC Temperature sensor SOIC-8N, ADT7410TRZ, Analog Devices Analog Devices , 16 位 温度传感器, ±0.5°C, 串行 - I2C接口, 8针 SOIC封装
ADSP-BF561SKBCZ-6A
analog devices
DSP Fixed-Point 16-Bit 600MHz 600MIPS 256-Pin CSP-BGA IC DSP CTRLR 32B 600MHZ 256CPBGA Blackfin Symmetric Multi-Proc 600MHz BGA Digital Signal Processors & Controllers - DSP, DSC Blackfin Symmetric Multi-Processor DSP, 16BIT, BLACKFIN PROC, 256CPBGA
ADSP-BF561SKBCZ-5V
analog devices
DSP Fixed-Point 16-Bit 533MHz 533MIPS 256-Pin CSP-BGA IC DSP 32BIT 500MHZ 256CSPBGA Digital Signal Processors & Controllers - DSP, DSC Blackfin Symmetric Multi-Processor
ADSP-BF537KBCZ-6AV
analog devices
DSP Fixed-Point 16-Bit 600MHz 600MIPS 182-Pin CSP-BGA IC DSP CTLR 16BIT 182CSPBGA ADSP-BF537KBCZ-6AV, 16bit Digital Signal Processor 600MHz ROM, SRAM, 32kb RAM, 182-Pin CSP BGA Digital Signal Processors & Controllers - DSP, DSC IC Low Pwr Blackfin w/ Adv Embd Cnct IC, DSP, 16BIT, 182CSPBGA
ADSP-BF561SKBZ500
analog devices
DSP Fixed-Point 16-Bit 500MHz 500MIPS 297-Pin BGA IC DSP 32BIT 500MHZ 297PBGA Digital Signal Processors & Controllers - DSP, DSC Blackfin Symmetric Multi-Processor DSP, 16BIT, BLACKFIN PROC, 297PBGA

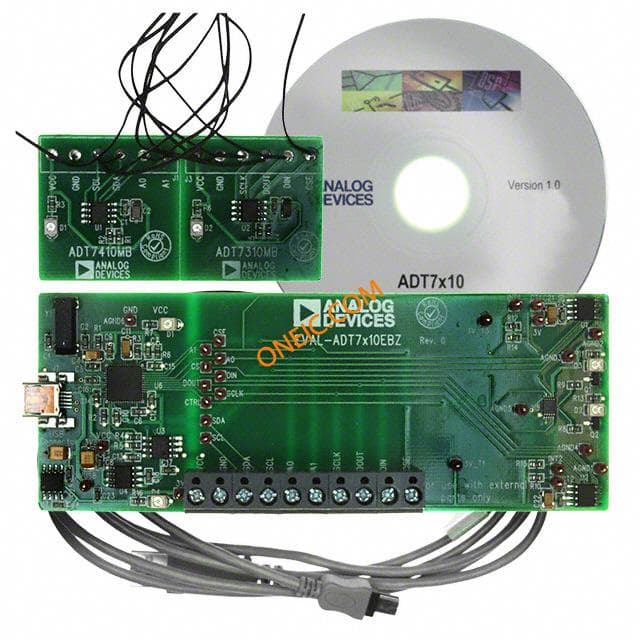

EVAL-ADT7X10EBZ
