ADP2102YCPZ-1.2-R7
| 制造商 | |
| 描述 | Conv DC-DC Single Step Down 2.7V to 5.5V 8-Pin LFCSP EP T/R IC REG BUCK SYNC 1.2V .6A 8LFCSP Voltage Regulators - Switching Regulators 600mA 3MHz Sync Step-Down Switching Voltage Regulators 600mA 3MHz Sync Step-Down |
| 分类 |
商业参数
| 其他名称 | ADP2102YCPZ-1.2-R7TR | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1500 | 标准封装名称 | LFCSP |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| PWM类型 | Current Mode | 效率 | 95 % |
| 输出类型 | Fixed | 额定电压 | 1.2 V |
| 电源调整率 | 0.3(Typ) % | 负载调整率 | 0.5(Typ) % |
| 输出电流 | 0.6 A | 输出数量 | 1 |
| 稳压器拓扑 | Step Down | 开关稳压器 | Yes |
| 开关频率 | 3000(Typ) kHz | 同步整流 | Yes |
| 最小输入电压 | 1.2V | 直流输入电压（最小） | 2.7 V |
| 共模瞬态抗扰度（最小） | Automotive | ||
机械参数
| 宽度 | 3 mm | 高度 | 0.84 mm |
| 长度 | 3 mm | 包装方式 | Tape and Reel |
| 引脚样式 | No Lead | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 封装形式 | 8LFCSP EP |
| 冷却的封装 | LFCSP EP | 包装数量 | LFCSP EP |
| 位数 | 8 | 供应商器件封装 | 8-LFCSP-VD (3x3) |
产品信息
| 类型 | Step Down | 系列 | ADP2102 |
| 拓扑 | Buck | 制造商全称 | Analog Devices |
环境参数
| 工作温度 | -40 to 85 °C | ||
文档与媒体
相关型号
ADP2102-1.375EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.375 Power Management IC Development Tools ADP2102-1.375 Eval EVAL BOARD FIXED OUTPUT 1.375
ADP2102-1.5-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.5 Power Management IC Development Tools ADP2102-1.5 Eval Brd EVAL BOARD FIXED OUTPUT 1.5V
ADP2102-1.875EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.875 Power Management IC Development Tools ADP2102-1.875 Eval EVAL BOARD FIXED OUTPUT 1.875V
ADP2102-2-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL 1.2V-1.5V ADJ OUTPUT Power Management IC Development Tools ADP2102-2 Eval Brd ADJ OUTPUT FROM 1.2V-1.5V
ADP2102-3-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL 1.5V-1.875V ADJ OUTPT Power Management IC Development Tools ADP2102-3 Eval Brd ADJ OUTPUT FROM 1.5V-1.875V
ADP2102-4-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL 2.5V-3.3V ADJ OUTPUT Power Management IC Development Tools ADP2102-4 Eval Brd ADJ OUTPUT FROM 2.5V-3.3V
ADP2102-1.8-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.8 Power Management IC Development Tools ADP2102-1.8 Eval Brd EVAL BOARD FIXED OUTPUT 1..8V
ADP2102-1.2-EVALZ
analog devices
Evaluation Board For StepDown, DC To DC Converter BOARD EVAL FOR 1.2V ADP2102 Power Management IC Development Tools ADP2102-1.2 Eval Brd EVAL BOARD FIXED OUTPUT 1.2
ADP2102-1.25-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.25 Power Management IC Development Tools ADP2102-1.25 EvalBrd EVAL BOARD FIXED OUTPUT 1.25V
ADP2102-1-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL 0.8V-1.2V ADJ OUTPUT Power Management IC Development Tools ADP2102-1 Eval Brd ADJ OUTPUT FROM 0.8V-1.2V
ADP2102-1.0-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.0 Power Management IC Development Tools ADP2102-1.0 Eval Brd EVAL BOARD FIXED OUTPUT 1.0V
ADP2102-0.8-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-0.8 Power Management IC Development Tools ADP2102-0.8 Eval Brd EVAL BOARD FIXED OUTPUT 0.8V

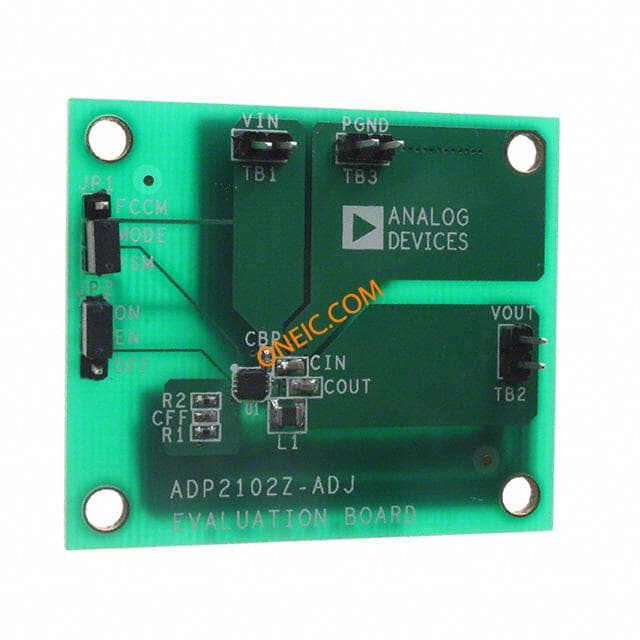

ADP2102-EVALZ
Analog Devices Inc
BOARD EVAL FOR ADJ VOLT ADP2102
