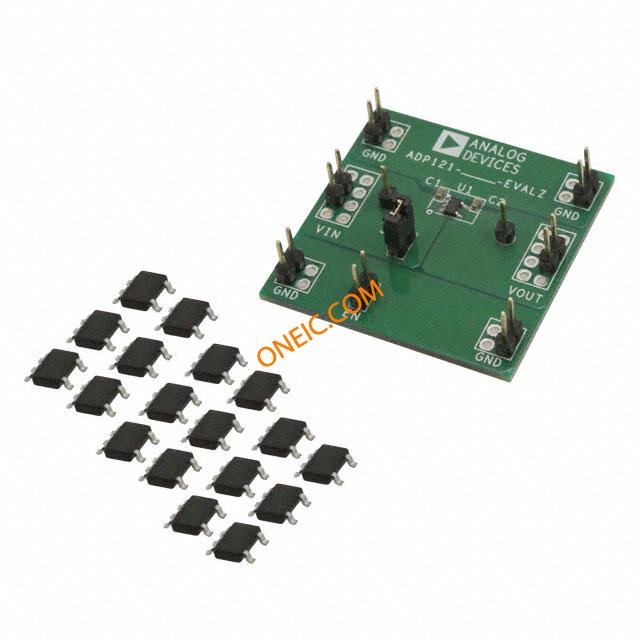

ADP121UJZ-REDYKIT
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For Low Quiescent Current, CMOS Linear Regulator 150mA KIT REDI TOOL 2.8/3.3 ADP121 Power Management IC Development Tools Redykit 2.8 3.3 on bds ADP121, LDO REGULATOR, EVAL KIT |
| 分类 |
商业参数
| 产品 | Evaluation Kits | 其他名称 | ADP121UJZREDYKIT |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84718000 |
电气参数
| 稳压器类型 | Positive Fixed | 额定电压 | 5.5 V |
| 输出电流 | 150mA | 元件数量 | :ADP121 |
| 最小输入电压 | 2.8V, 3.3V | ||
机械参数
| 重量 | 0.2 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 系列 | ADP121 |
| 内容 | 2 Boards, Samples | 产品特性 | :Two Fully Assembled and Tested Evaluation Boards per Kit, Full Set of IC Voltage Options in each Kit |
| 功能 | Evaluation board kit for the ADP121 | 套件类型 | :Power Management |
| 套件内容 | :ADP121-2.8-EVALZ & ADP121-3.3-EVALZ Evaluation Boards, 18 ADP121 Samples in Labelled Bag | 每IC通道数 | 1 - Single |
| 工具类型/特性 | ADP121 | 射频系列/标准 | ADP121 |
| 使用的IC/零件 | ADP121 | 芯片组制造商 | :Analog Devices |
| 应用细节 | :Low-Dropout Linear Regulator | 适用产品/相关产品 | ADP121 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
GRM188R60J105KA01D
murata electronics
Cap Ceramic 1uF 6.3V X5R 10% SMD 0603 85°C Paper T/R Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 1uF 6.3volts X5R 10% CAP CER 1UF 6.3V 10% X5R 0603 Murata 1μF ±10% 6.3V dc X5R Dielectric SMD Ceramic Multilayer Capacitor, 0603 Package Cap Ceramic 1uF 6.3V X5R 10% SMD 0603 85C Paper T/R CAPACITOR, 0603, 1UF, 6.3V, REEL 4000 CAPACITOR, 0603, 1UF, 6.3V CAP,CERAMIC,0603,1UF Murata GRM 系列 1μF ±10% X5R电介质 6.3 V 直流 SMD 多层陶瓷电容器 (MLCC) , 0603封装 KC 1,0µF 0603 10% 6,3V X5R
EVAL-CN0187-SDPZ
analog devices
EVAL-CN0187-SDPZ Wall Power Supply For Evaluation Board BOARD EVAL CN0187 RF Development Tools CftL CN0187 Eval BRD ADL5502, RF POWER, EVALUATION BOARD Analog Devices 射频功率测量 参考设计
02016D105MAT2A
avx
CAP 1.0UF 6.3VDC X5R 20% SMD 0201 Multilayer Ceramic Capacitors MLCC - SMD/SMT 6.3volts 1.0uF 20% X5R CAP CER 1UF 6.3V 20% X5R 0201 CAP, MLCC, X5R, 1UF, 6.3V, 0201 KC 1,0µF 0201 20% 6,3V X5R
ADP121-AUJZ33R7
analog devices
LDO Regulator Pos 3.3V 0.15A 5-Pin TSOT T/R IC REG LDO 3.3V 0.15A TSOT23-5 Voltage Regulators - Standard 150mA Low Quiescent Crnt CMOS LDO, 150MA, 3.3V, TSOT-23-5 Analog Devices ADP12x 系列 线性稳压器, 3.3 V ±1% /150mA, 5针 TSOT Linear Voltage Regulators 150mA Low Quiescent Crnt CMOS

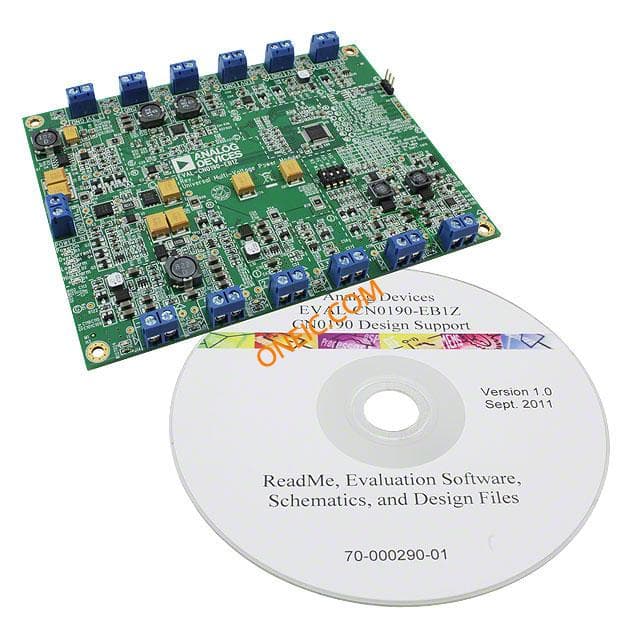

EVAL-CN0190-EB1Z
