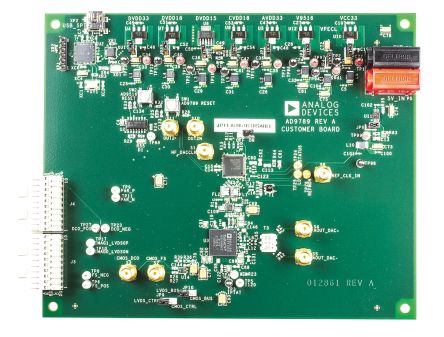

AD9789-EBZ
| 制造商 | |
| 描述 | Evaluation Board For 14Bit 2400 MSPS RF Dac With 4Channel Signal Processing BOARD EVAL AD9789 Data Conversion IC Development Tools AD9789 EVAL BRD AD9789, DAC, RF, EVALUATION BOARD Analog Devices 评估测试板 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | AD9789EBZ |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84733020 |
电气参数
| DAC类型 | Voltage | 接口 | USB |
| 建立时间 | 13ns | 数据接口 | SPI™ |
| 位数 | 14 | DAC数量 | 4 |
| 供电电流 | 1.5 mA | 供电电压 | 5 V |
| 元件数量 | :- | 采样率（每秒） | 2.4G |
机械参数
| 重量 | 0.25 | 包装方式 | Bulk |
产品信息
| 类型 | Development Kit | 系列 | AD9789 |
| 内容 | Board, Cable, Software | 产品特性 | :- |
| 功能 | Evaluation board connects to a DPG2 to allow for quick evaluation of the AD9789 | 套件类型 | :- |
| 套件内容 | :Quick Start Guide, Schematics, PCB Layout files, IBIS Model, SPI Application, DPGDownloader Panel | 工具类型/特性 | AD9789 |
| 射频系列/标准 | AD9789 | 使用的IC/零件 | AD9789 |
| 芯片组制造商 | :Analog Devices | 应用细节 | :- |
| 适用产品/相关产品 | AD9789 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号

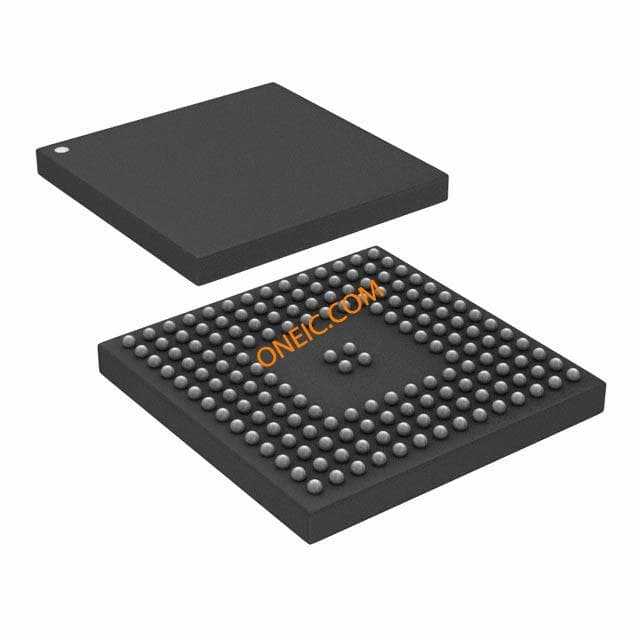

AD9789BBCZ
analog devices
QAM Encoder/Interpolator/Upconverter 164-Pin CSP-BGA IC DAC 14BIT 2.4GSPS 4CH 164-BGA AD9789BBCZ, 14-Bit General Purpose DAC 2400Msps, SPI, 164-Pin CSP BGA Digital to Analog Converters - DAC 14B 2400MSPS RF w/ 4CH Signal Process DAC, 14BIT, 2.4GSPS, 4CH, 164BGA
ADF4150BCPZ
analog devices
PLL Frequency Synthesizer Single 24-Pin LFCSP EP Tray Phase Locked Loops - PLL Fractional-N/ Integer-N Analog Devices 频率合成器 , 24针 LFCSP WQ封装
ADF4350BCPZ
analog devices
PLL Frequency Synthesizer Single 32-Pin LFCSP EP IC SYNTH PLL VCO FN/IN 32LFCSP 137.5-4400MHz Synthesizer with VCO LFCSP Phase Locked Loops - PLL WB Synthesizer w/ Intg VCO IC, PLL, 4.4GHZ, 32LFCSP IC, PLL, 4.4GHz, LFCSP-32 Analog Devices 双 137.5 → 4400 MHz 频率合成器 , 32针 LFCSP VQ封装
PIC18F4550-I/ML
microchip
MCU 8-bit PIC18 PIC RISC 32KB Flash 2.5V/3.3V/5V 44-Pin QFN EP Tube 8 bit MCU QFN44 IC MCU 8BIT 32KB FLASH 44QFN 8-bit Microcontrollers - MCU 32kBF 2048RM FSUSB2 8BIT MCU, 32K FLASH, 2K RAM, USB 44-Pin,32KBFlash,2048RAM,FS-USB2.0 PIC microcontroller; EEPROM:256B; SRAM:204B; 48MHz; QFN44; 2÷5.5V PIC18F 32K QFN44 85°C

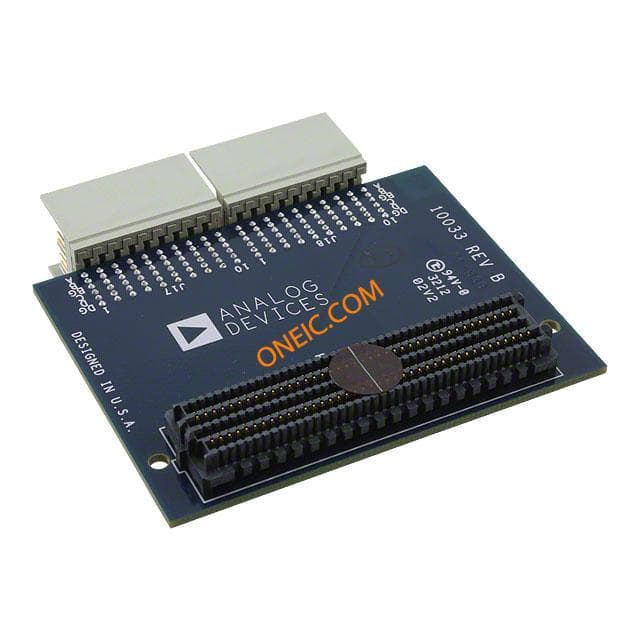

AD-DAC-FMC-ADP
