点击放大查看

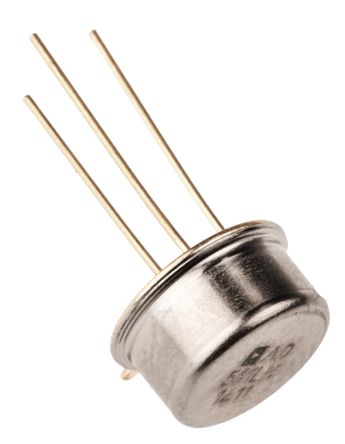

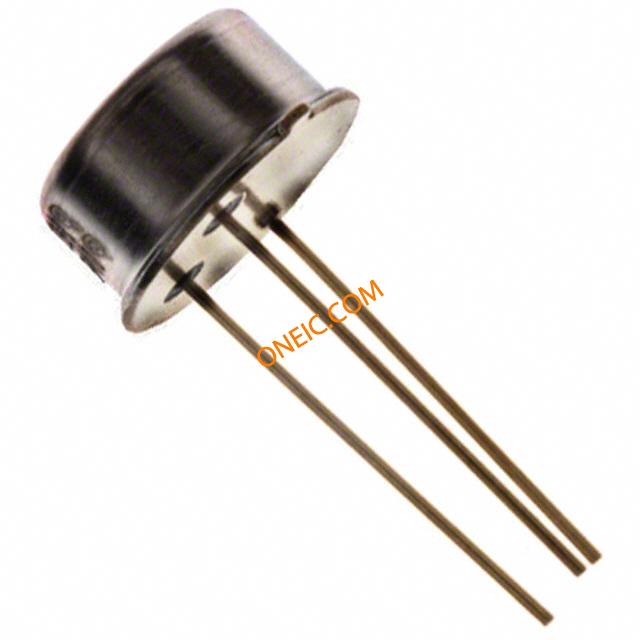

AD581LH
| 制造商 | |
| 描述 | V-Ref Precision 10V 10mA 3-Pin TO-5 Tube IC VREF SERIES PREC 10V TO-5-3 AD581LH, Voltage Reference 2.5V, 5mV Accuracy, 10mA 40V Max. 3-Pin TO-5 Voltage References HI PREC 10V IC REF IC, SERIES V-REF, 10V, 5mV, TO-5-3 Voltage reference, 10 V, TO-5, AD581LH, Analog Devices Analog Devices Fixed 10V 电压参考, ±0.05 %精确度, 10mA, 40 V输入, 3针 TO-5封装 |
| 分类 |
商业参数
| 产品 | Voltage References | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 100 | 标准封装名称 | TO-205-AA |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85411000 | 抗辐射加固 | No |
电气参数
| 容差 | ±5mV | 基准类型 | Precision |
| 额定电压 | 10 V | 电源调整率 | 0.005 %/V |
| 负载调整率 | 500 uV/mA | 输出电流 | 10 mA |
| 电压基准 | :10V | 通道数量 | 1 |
| 最小输入电压 | 10V | 输出电压（最大） | 10 V |
| 静态电流 (Iq) | 1mA | 输出电流/通道 | 10 mA |
| 精度 - 最高（最低） | 5 mV | 共模瞬态抗扰度（最小） | Commercial |
| 最大持续工作电压（MCOV） | :30V | ||
机械参数
| 宽度 | 9.4mm | 高度 | 4.7mm |
| 长度 | 9.4mm | 重量 | 0.00091 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :3 | 封装形式 | 3TO-5 |
| 冷却的封装 | TO-5 | 材料表面处理 | :- |
| 包装数量 | TO-5 | 尺寸/外形 | 9.4 x 9.4 x 4.7mm |
| 位数 | 3 | 供应商器件封装 | TO-5-3 |
产品信息
| 系列 | AD581 | 拓扑 | Series |
| 可编程性 | Precision | ||
环境参数
| 工作温度 | 0 to 70 °C | 温度系数 | 5 ppm/°C |
| 典型温度系数 | 5 PPM / C | ||
