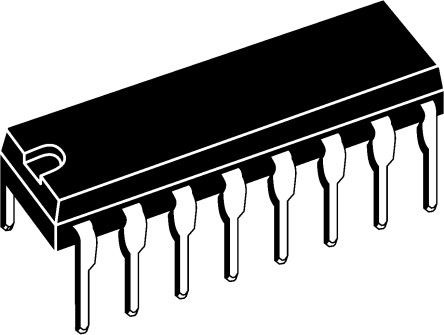

AD524ADZ
| 制造商 | |
| 描述 | SP Amp INSTR Amp Single ±18V 16-Pin SBCDIP Tube IC OPAMP INSTR 1MHZ 16CDIP AD524ADZ, Instrumention Amplifier, 0.25mV Offset, 25MHz 70dB CMRR, 16-Pin SBCDIP Instrumentation Amplifiers IC PREC SP Amp INSTR Amp Single �18V 16-Pin SBCDIP Tube IC, INSTRUMENT AMP, 25MHZ, 110DB, DIP-16 INSTR-AMPLIFIER, 25MHZ, 110DB, DIP-16 Instrumentation Amplifier, CDIL-16, 400 kHz, AD524ADZ, Analog Devices Analog Devices 仪表放大器, 0.25mV偏置, 25MHz, 70dB CMRR 16针 SBCDIP封装 |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 23 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 抗辐射加固 | No |
电气参数
| 增益 | 1 V/V to 1000 V/V | 输出端 | :Single Ended |
| 压摆率 | 5 V/µs | 输出类型 | No |
| 输入功率 | Dual | 额定功率 | 0.45 W |
| 额定电压 | 10 V | 共模抑制比、电源抑制比（典型） | 70dB |
| 输出电流 | 3.5mA | 供电电压 | ±6 V |
| 供电类型 | Dual | 通道数量 | 1 |
| 元件数量 | 5 | 输入电阻 | 1GΩ |
| 输入偏置电流 | 50nA | ADC/DAC 数量 | :5 |
| 最小输入电压 | 250µV | 增益带宽积 | 25 MHz |
| 轨到轨工作 | No | 最大功耗 | 450 mW |
| 电源电压范围（典型） | �15 V | 输入失调电压（最大） | 0.25mV |
机械参数
| 宽度 | 7.87mm | 高度 | 3.56mm |
| 长度 | 21.34mm | 重量 | 0.002 |
| 带宽 | 400 kHz | 包装方式 | Tube |
| 安装类型 | Through Hole | -3dB带宽 | 1MHz |
| 安装样式 | Through Hole | 引脚数 | :16 |
| 封装形式 | 16SBCDIP | 冷却的封装 | SBCDIP |
| 材料表面处理 | :- | 尺寸/外形 | 21.34 x 7.87 x 3.56mm |
| 位数 | 16 | 供应商器件封装 | 16-CDIP Side Brazed |
产品信息
| 类型 | Instrumentation Amplifier | 系列 | AD524 |
| 放大器类型 | Instrumentation | 电路数 | 1 |
环境参数
| 工作温度 | -40 to 85 °C | ||
