点击放大查看
LTC6993CDCB-2#TRMPBF
| 制造商 | |
| 描述 | Monostable Multivibrator Single 6-Pin DFN EP T/R IC MONOSTABLE MULTIVIBRATOR 6DFN GENERATOR, PULSE, TIMERBLOX, 6DFN |
| 分类 |
商业参数
| 其他名称 | LTC6993CDCB-2#TRMPBFCT | 标准包装数量 | 500 |
| 标准封装名称 | DFN | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85416000 |
| 抗辐射加固 | No | ||
电气参数
| 逻辑类型 | Monostable | 输入信号 | :No |
| 工作模式 | :Monostable | 额定电压 | 2.25 |
| 供电电压 | 2.25 V ~ 5.5 V | 传播延迟 | 11ns |
| 元件数量 | 1 | 施密特触发器输入 | No |
| 最小供电电压 | 2.25 V | 传播延迟（最大） | 28(Typ) |
| 传播延迟时间 | 28 ns | 输出高/低电流 | 16mA, 16mA |
机械参数
| 重量 | 0.00005 | 包装方式 | Tape and Reel |
| 引脚样式 | No Lead | 安装类型 | Surface Mount |
| 引脚数 | :6 | 封装形式 | 6-WFDFN Exposed Pad |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | DFN EP |
| 位数 | 6 | 供应商器件封装 | 6-DFN (2x3) |
产品信息
| 功能 | Monostable Multivibrator | 定时器数量 | :1 |
| 独立电路数 | 1 | ||
环境参数
| 工作温度 | 0°C ~ 70°C | 结工作温度 | 70C |
文档与媒体
相关型号
LTC6078IDD#PBF
Analog Devices, Inc.
OP Amp Dual GP R-R I/O 5.5V 10-Pin DFN EP IC OPAMP GP 750KHZ RRO 10DFN
LTC1659CMS8#PBF
Analog Devices, Inc.
DAC 1-CH 12-bit 8-Pin MSOP IC D/A CONV 12BIT R-R 8-MSOP
LTC6991CDCB#TRMPBF
Analog Devices, Inc.
IC OSC SILICON 977HZ 6-DFN OSC, LOW FREQ, TIMERBLOX, 6DFN IC OSC SILICON PROG 6-DFN

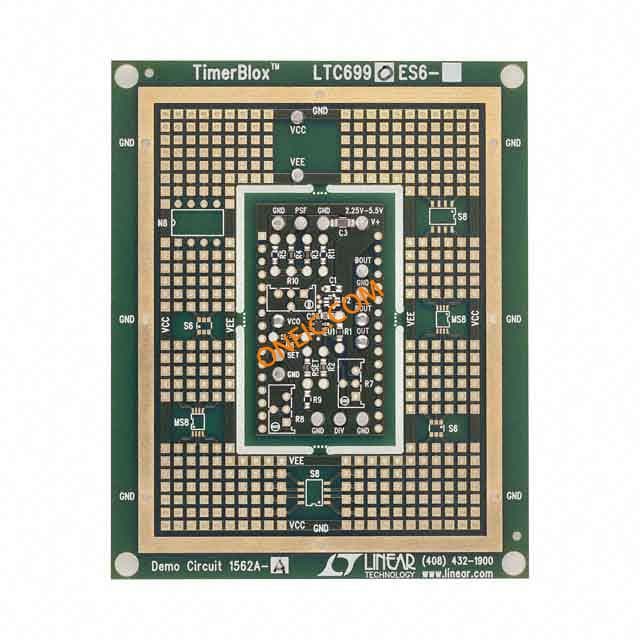

DC1562A-H
Analog Devices, Inc.
BOARD EVAL LTC6993-2 EVAL BOARD, LTC6993-2 100ms PULSE GENERATOR
DC1562A-I
Analog Devices, Inc.
BOARD EVAL LTC6993-3 EVAL BOARD, LTC6993-3 100ms PULSE GENERATOR
DC1562A-D
Analog Devices, Inc.
BOARD EVAL LTC6992-2 EVAL BOARD, LTC6992-2 10KHZ PWM CONTROLLER
DC1562A-J
Analog Devices, Inc.
BOARD EVAL LTC6993-4 EVAL BOARD, LTC6993-4 100ms PULSE GENERATOR

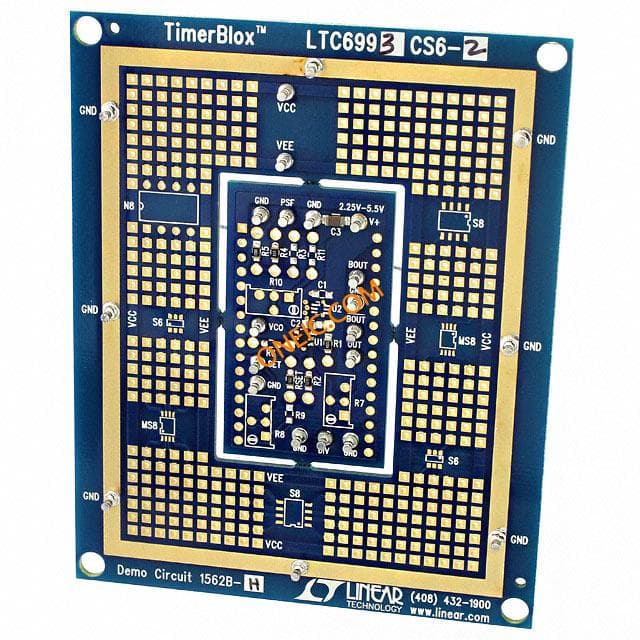

DC1562B-H
