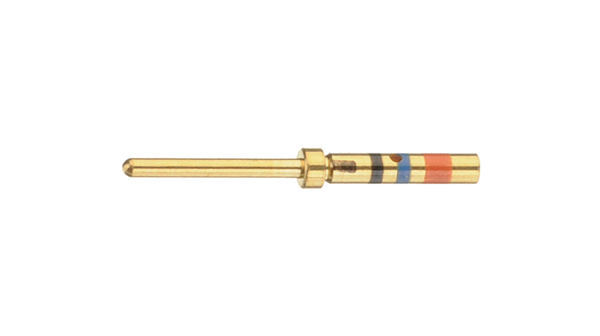

M39029/58-360

制造商	Amphenol Corporation
描述	Contact PIN Crimp ST Cable Mount Contacts CONT PIN CRMP 22-28AWG 22D PWR M39029 Series Size 22D 5A Male Circular Connector Contact For Use With D38999 Circular Connector, Crimp Circular MIL Spec Contacts PIN 22D GA CIRCULAR CONTACT, PIN, 28-22 AWG, CRIMP CRIMP CONTACT, PIN, 38999, SIZE 22 CONTACT, PIN, GOLD PLATED, CRIMP TERMIAL Pin contact, size 22D 5 A, M39029/58-360, Amphenol Amphenol M39029 系列 5A 公压接端接圆形连接器触芯, 使用于D38999 圆形连接器
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

零件号别名

LP-251415-725

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
MIL类型	MIL-DTL-38999 I	海关税号	85369010
认证机构	:MIL-DTL-38999 Series III

电气参数

最大额定电流

机械参数

尺寸	22D	重量	0.1
包装方式	Bulk	导线线规	22-28 AWG
端接方式	Crimp	触点尺寸	22D
触头类型	Signal	安装类型	Cable Mount
插针或插孔	Pin	连接器类型	Connector Circular
接触镀层	Gold	触头材料	:Copper
第一触头极性	Pin (Male)	接触件端接	Crimp
线规或范围 - AWG	:28AWG

产品信息

类型	Power	连接器性别	PIN
系列	M39029	适用产品/相关产品	D38999 Circular Connector

环境参数

工作温度

+125°C

文档与媒体

PDF 文档

12-092.pdf

PDF 文档

MIL-DTL-38999 Series III Datasheet

PDF 文档

JT/LJT Submini Cylindrical Conn

PDF 文档

1768930.pdf

PDF 文档

inhouse_Amphenol_DTL-38999_II%20JT%20.pdf

PDF 文档

1385427.pdf
