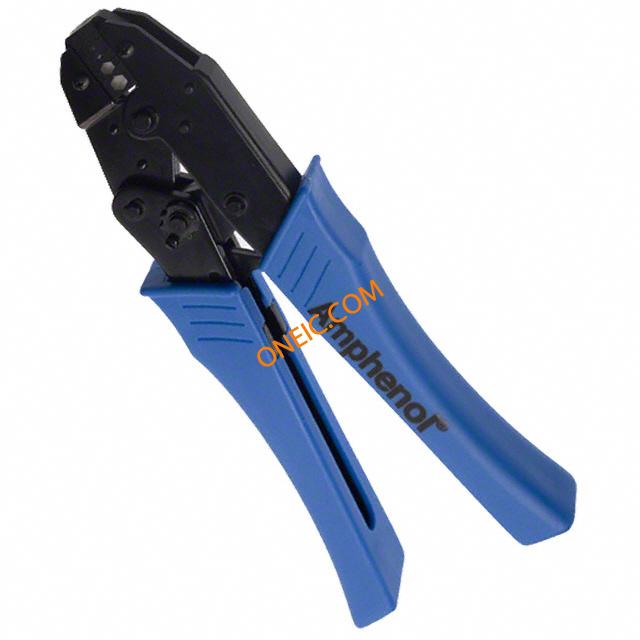

CTL-5
| 制造商 | Amphenol Corporation |
| 描述 | Cavity Quick Crimp Tool Crimpers CRIMP TOOL TOOL CRIMP PLENUM 59, 62 CRIMP TOOL tool, ratcheted hand crimp tool w/die set, cavities:.052, .068, .100, .213, .255(see) |
| 分类 |
商业参数
| 产品 | Crimpers | 零件号别名 | 361-9197 93F7589 |
| 产品类别 | Crimpers | 标准包装数量 | Bulk |
合规参数
| RoHS | Not Applicable | 欧盟RoHS | RoHS Not Applicable |
| 海关税号 | 82032000 | ||
机械参数
| 重量 | 0.603 | 包装方式 | Bulk |
| 电缆类型 | RG55;RG58;RG59;RG62;RG140;RG141;RG142;RG210;RG223;RG303;RG400;Plenum 59;Plenum 62;Belden 9258;Belden 9259;Belden 9907;Belden 89907 | 连接器类型 | BNC/TNC/N-Type/Mini UHF |
| 驱动力 | Manual, Ratchet | 适用端子尺寸 | RG 55, 58, 62, 140, 141, 142, 210, 223, 303, 400, Belden |
| 筒体内径 | :0.255", 0.213", 0.1", 0.068", 0.052" | ||
产品信息
| 类型 | Crimp Tool | 产品特性 | Side Entry, Ratchet |
| 套装类型 | Replaceable | 工具类型 | Hand Crimper |
| 制造商全称 | CTL | 可替换灯泡 | 227-1221-11, 227-1221-13, 227-1221-57, 227-1221-59, 227-980-1, 227-980-7 |
| 应用细节 | 0.052/0.068/0.1/0.213/0.255 HEX | 适用产品/相关产品 | Coaxial, RF - BNC, N, TNC, Mini UHF |
文档与媒体
相关型号
CTL-3
amphenol
Quick Crimp Tool For N Crimp Plugs 3 PC Types Crimpers CRIMP TOOL HEX SZ .100 .429 .213 CRIMP TOOL RG-58, 8, 213 tool;ratcheted hand crimp tool w/die set;cavities: .100;.429;.213 (see notes) CRIMP TOOL tool, ratcheted hand crimp tool w/die set, cavities: .100, .429, .213 (see notes) CRIMP TOOL N WITH DIES FOR RG8/58/213/214 - ETHERNET 3 PIECE CONN
CTL-9
amphenol
Quick Crimp Tool For Sub Min Crimp Connectors Crimpers SMA CRIMP TOOL TOOL CRIMP DIE SET tool;ratcheted hand crimp tool w/die set;cavities: .068;.128;.178 (see notes) tool, ratcheted hand crimp tool w/die set, cavities: .068, .128, .178 (see notes)
CTL-2
amphenol
Quick Crimp Tool For Bnc And Tnc Crimp Plugs 2 And3 PC Types Crimpers CRIMP TOOL HEX SZ .178 .324 .068 CRIMP TOOL RG-174, BELDEN 8281 CRIMP TOOL tool, ratcheted hand crimp tool w/die set, cavities: .178, .324, .068 (see notes) Hex crimp tool with dies
CTL-13
amphenol
MMCX CTL Crimp Tool Crimpers CRIMP TOOL HEX SIZE .105 .128 .151 TOOL CRIMP .105/.128/.151 HEX tool;ratcheted hand crimp tool w/die set;cavities: .105;.128;.151 (see notes) CRIMP TOOL tool, ratcheted hand crimp tool w/die set, cavities: .105, .128, .151 (see notes)
CTL-6
amphenol
Quick Crimp Tool For BNC And TNC Crimp Plugs 3 PC Types Crimpers CRIMP TOOL TOOL CRIMP PLENUM 59, 62 tool;ratcheted hand crimp tool w/die set;cavities:.178;.255;.052;.068(see notes) tool, ratcheted hand crimp tool w/die set, cavities:.178, .255, .052, .068(see notes) Hex crimp tool with dies
