C091 31C005 100 2
| 制造商 | |
| 描述 | Conn Circular M 5 POS Solder ST Panel Mount 5 Terminal 1 Port 05P 091D CIRCULAR CONNECTOR CONN MALE RCPT 5POS REAR MT C091D Rear Panel Mount 5 way pin Solder Circular DIN Connectors Plug 5 Pin Rear MT solder |
| 分类 |
商业参数
| 最小起订量 | 250 | 单位包装 | 50 |
| 零件号别名 | 100 2 31C005 C091 U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | Boxed | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 保护特性 | 65/67 |
电气参数
| 额定电压 | 300V | 供电电压 | DIN |
| 最大额定电流 | 5A | ||
机械参数
| 包装方式 | Bulk | 出线方向 | Yes |
| 外壳尺寸 | 20mm | 方向 | Keyed |
| 端接方式 | Solder | 重量（g） | 12.00000 |
| 安装类型 | Panel Mount | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Silver |
| 紧固类型 | Threaded | 连接器用途 | Screw On |
| 壳体材料 | Metal | 端接样式 | FEMALE |
| 第一触头极性 | Male | 触点数 | 05 |
| 位数 | 5 | 外壳尺寸-插件 | DIN (240 Degree) |
| 外壳材料及表面处理 | Die Cast, Nickel Plated | 典型触点布局 | PLUG |
| 触点材料 - 镀层 | -40 TO 85 | ||
产品信息
| 类型 | Circular | 连接器性别 | RCP |
| 系列 | C091D | 产品特性 | Shielded |
| 匹配码 | C09131C0051002 | 产品子类型 | Connectors |
| 标准交期 | 12 weeks | 射频系列/标准 | C091D |
环境参数
| 密封等级 | IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | SCREW°C | ||
文档与媒体
相关型号
C091 11D005 000 2
Amphenol Tuchel
Circular DIN Connectors 5 CONTACT;ST;METAL; 300V CRIMP TERM CONN PLUG 5POS CABLE SKT CRIMP
C091 00U000 130 2
Amphenol Tuchel
Circular DIN Connectors CONNECTOR COVER PROTECTIVE CAP PROTECTIVE COVER, FOR MALE RECEPTACLES Protection cover; Series: C091A, C091B, C091D; Mat: metal; -40÷85°C
C091 31F005 100 2
Amphenol Tuchel
Circular DIN Connectors FMale 5 Pin R/A cable CONN CIR FMALE 5POS R/A CABLE CONN CIR FMALE 5POS R/A INLINE

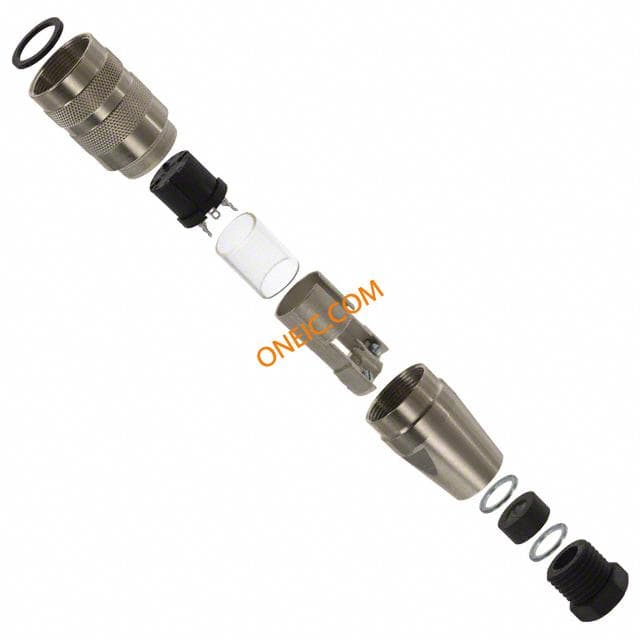

C091 31D005 100 2
