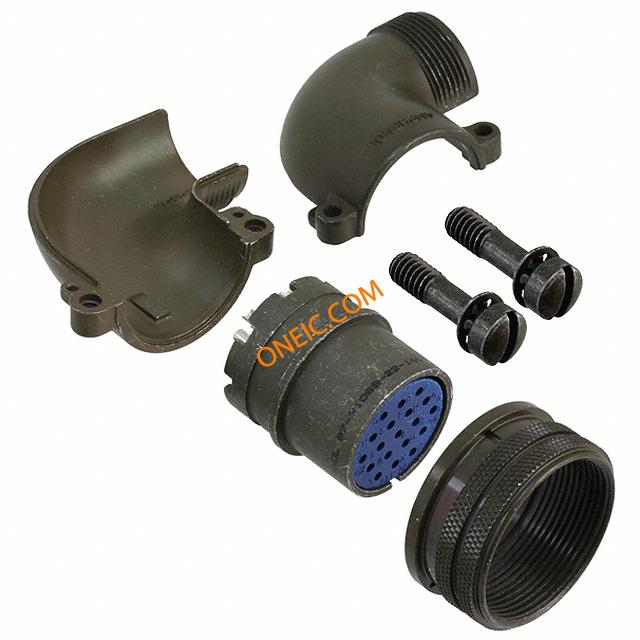

97-3108B-22-14S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 19 POS Solder RA Cable Mount 19 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 19POS RT ANG W/SKT connector;metal circ;rt angle plug;size 22;19 #16 solder socket cont;olive drab Circular MIL Spec Connector 19P Size 22 Solder R/A Socket Plug CIRCULAR CONNECTOR PLUG SIZE 22, 19POS, CABLE connector, metal circ, rt angle plug, size22, 19 #16 solder socket cont, olive drab |
| 分类 |
商业参数
| 其他名称 | 973108B2214S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85366910 | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 重量 | 0.104 | 包装方式 | Bulk |
| 出线方向 | Split | 外壳尺寸 | 22 |
| 导线线规 | 16-22 | 方向 | N (Normal) |
| 外壳样式 | angle plug | 端接方式 | Solder |
| 触头类型 | socket contacts | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Right |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Free Hanging | 封装形式 | Metal |
| 外壳材料（壳体） | split backshell | 连接器用途 | Threaded |
| 插入角度 | 22-14 | 本体材料 | :Aluminium Alloy |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 2 | 介电材料 | Diallyl-Phthalate |
| 位数 | 19 | 外壳尺寸-插件 | 22-14 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 19#16 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | B |
| 连接器性别 | PL | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
