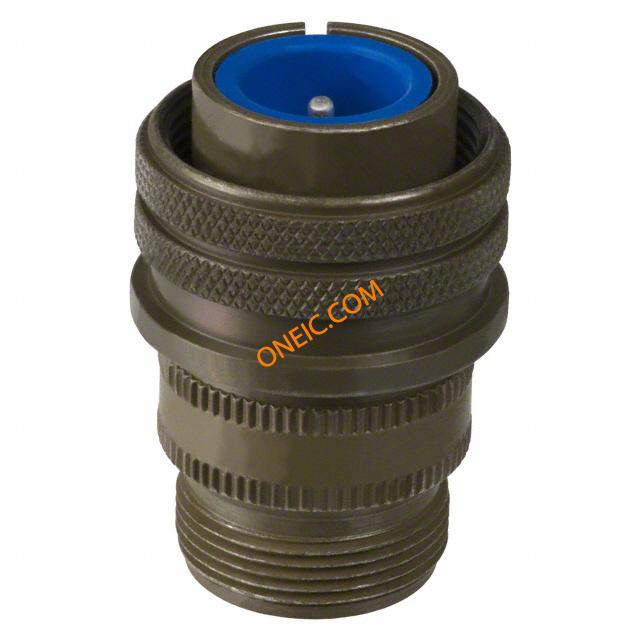

97-3106A-18-16P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 1 POS Solder ST Cable Mount 1 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 1POS W/PINS connector;metal circ;straight plug;size 18;1 #12 solder pin contact;olive drab Circular MIL Spec Connector 1P Straight Pin Plug Sz 18 Solder CIRCULAR CONNECTOR ((NW)) connector, metal circ, straight plug, size18, 1 #12 solder pin contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 10-820070-16P | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85366910 | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 3000VAC, 4200VDC | 最大额定电流 | 23A |
机械参数
| 重量 | 0.05 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 18 |
| 导线线规 | 14-12 | 方向 | N (Normal) |
| 外壳样式 | straight plug | 端接方式 | Solder |
| 触头类型 | pin contacts | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Free Hanging | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 18-16 | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 1 |
| 介电材料 | Diallyl-Phthalate | 位数 | 1 |
| 外壳尺寸-插件 | 18-16 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 1#12 | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
