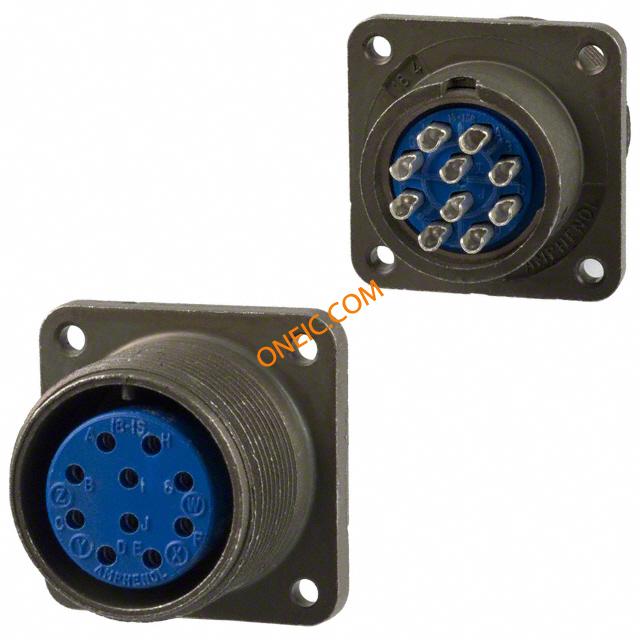

97-3102A-18-1S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 10 POS Solder ST Box Mount 10 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 10POS W/SOCK connector;metal circ;box recept;size 18;10 #16 solder socket contact;olive drab SOCKET, PANEL MOUNT, 10WAY connector, metal circ, box recept, size 18, 10 #16 solder socket contact, olive drab |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | SVHC | :Cadmium (20-Jun-2013) |
| 海关税号 | 85369010 | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | :700V | 工作电压 | :700V |
| 击穿电压 | :2000V | 最大额定电流 | 13A |
机械参数
| 宽度 | :34.93mm | 长度 | :34.11mm |
| 重量 | 0.042 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 18 |
| 导线线规 | :22AWG | 方向 | N (Normal) |
| 外壳样式 | box mount receptable | 端接方式 | Solder |
| 触头类型 | socket contacts | 安装类型 | Box Mount |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 18-1 | 本体材料 | :Aluminium |
| 触头材料 | :Copper | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 第一触头极性 | :Socket |
| 触点数 | :10 | 面板开孔形状 | :26.97mm |
| 接触件端接 | :Solder | 介电材料 | Diallyl-Phthalate |
| 位数 | 10 | 外壳尺寸-插件 | 18-1 |
| 安装孔直径 | :3.25mm | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 10#16 | 线规或范围 - AWG | :16AWG |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :1.4mm |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | :97 |
| 制造商全称 | 97 Series | 应用细节 | Commercial |
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP66 |
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
