97-3102A-18-1P
| 制造商 | |

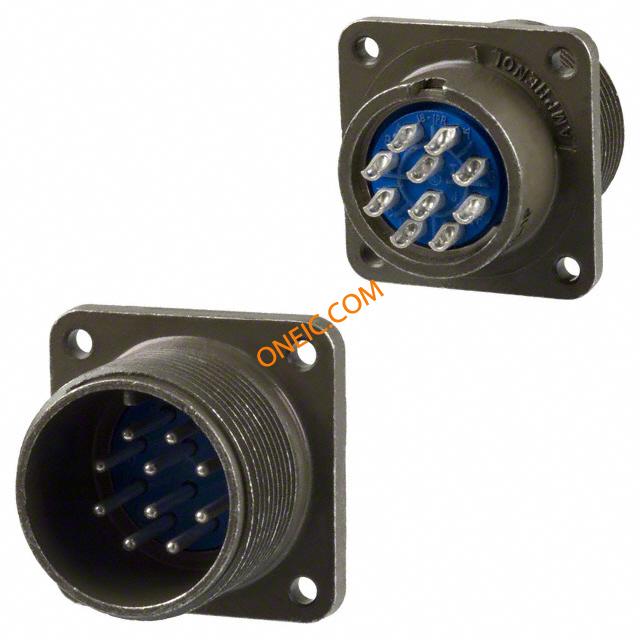

| 描述 | Conn MIL-C-5015 Circular PIN 10 POS Solder ST Box Mount 10 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 10POS W/PINS connector;metal circ;box recept;size 18;10 #16 solder pin contact;olive drab Circular MIL Spec Connector 10P Sz 18 Box Mount Pin Recept Solder PLUG, PANEL, 10WAY connector, metal circ, box recept, size 18, 10 #16 solder pin contact, olive drab |
| 分类 |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85369010 | 认证机构 | :MIL Spec |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 700 V, 250 V | 工作电压 | :700V |
| 击穿电压 | :2000V | 最大额定电流 | 13A |
机械参数
| 宽度 | :34.93mm | 长度 | :34.11mm |
| 重量 | 0.038 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 18 |
| 导线线规 | 16-22 | 方向 | N (Normal) |
| 外壳样式 | box mount receptable | 端接方式 | Solder |
| 触头类型 | pin contacts | 安装类型 | Box Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Panel | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 18-1 | 本体材料 | :Aluminium |
| 触头材料 | :Copper | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 10 |
| 面板开孔形状 | :26.97mm | 接触件端接 | :Solder |
| 介电材料 | Diallyl-Phthalate | 位数 | 10 |
| 外壳尺寸-插件 | 18-1 | 安装孔直径 | :3.25mm |

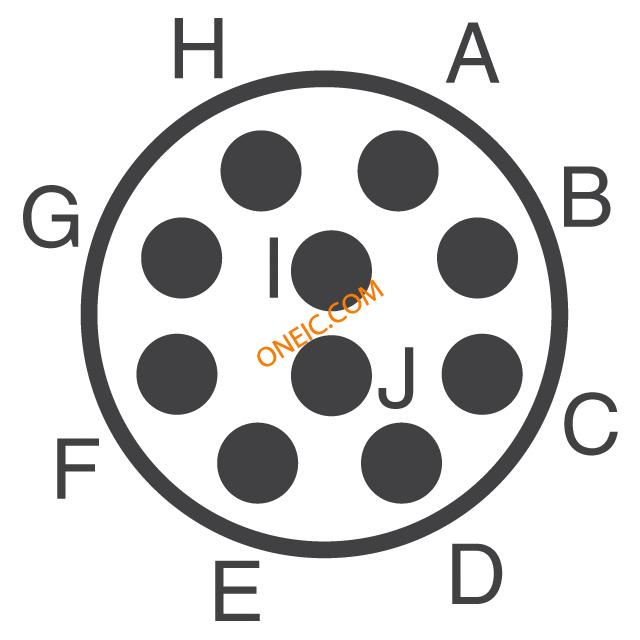

| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 10#16 |
| 线规或范围 - AWG | :16AWG | 第一连接器安装类型 | :Panel |
| 外径-未扩张 | :1.4mm | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP66 |
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
