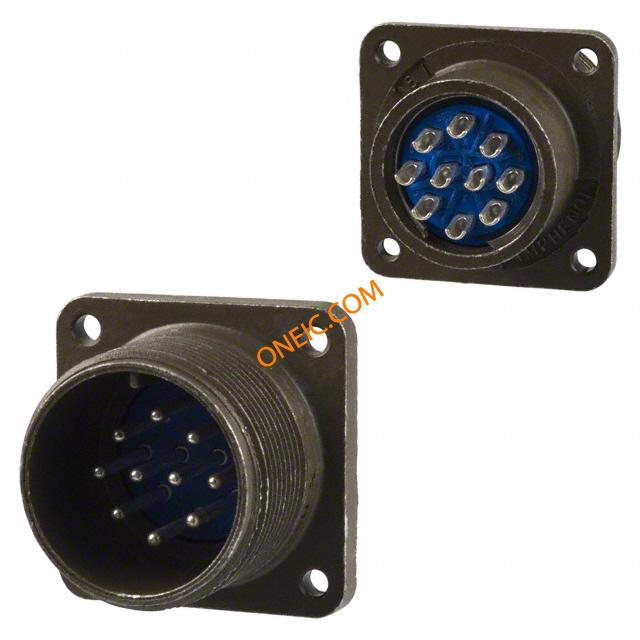

97-3102A-18-19P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 10 POS Solder ST Box Mount 10 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 10POS W/PINS connector;metal circ;box recept;size 18;10 #16 solder pin contact;olive drab connector, metal circ, box recept, size 18, 10 #16 solder pin contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 10-820050-19P | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 18 | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | box mount receptable |
| 端接方式 | Solder | 触头类型 | pin contacts |
| 安装类型 | Box Mount | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 封装形式 | Metal | 外壳材料（壳体） | solid backshell |
| 连接器用途 | Threaded | 插入角度 | 18-19 |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 触点数 | 10 | 介电材料 | Diallyl-Phthalate |
| 位数 | 10 | 外壳尺寸-插件 | 18-19 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |

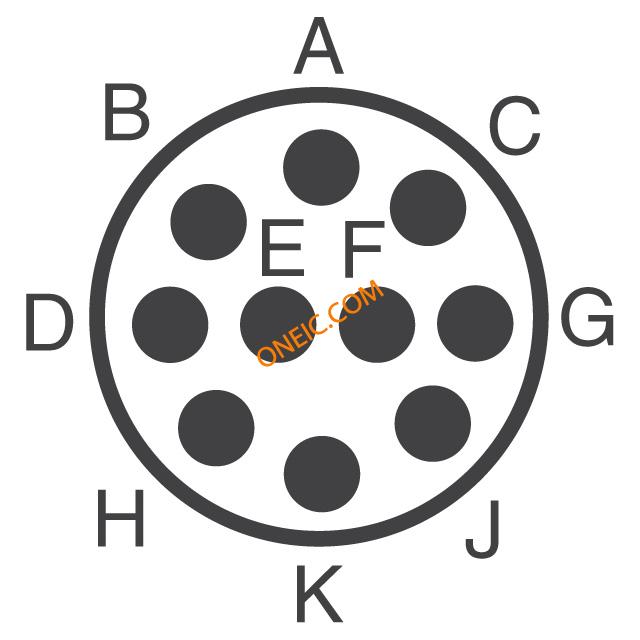

| 典型触点布局 | 10#16 | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 制造商全称 | 97 Series |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
97-3106A-18-19S
amphenol
Conn MIL-C-5015 Circular SKT 10 POS Solder ST Cable Mount 10 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 10POS W/SOCKETS connector;metal circ;straight plug;size 18;10 #16 solder socket cont;olive drab connector, metal circ, straight plug, size18, 10 #16 solder socket cont, olive drab

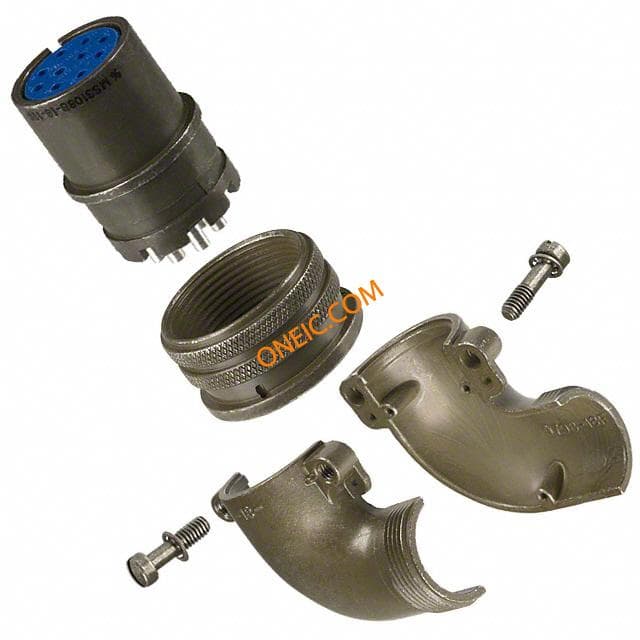

97-3108B-18-19S
