点击放大查看

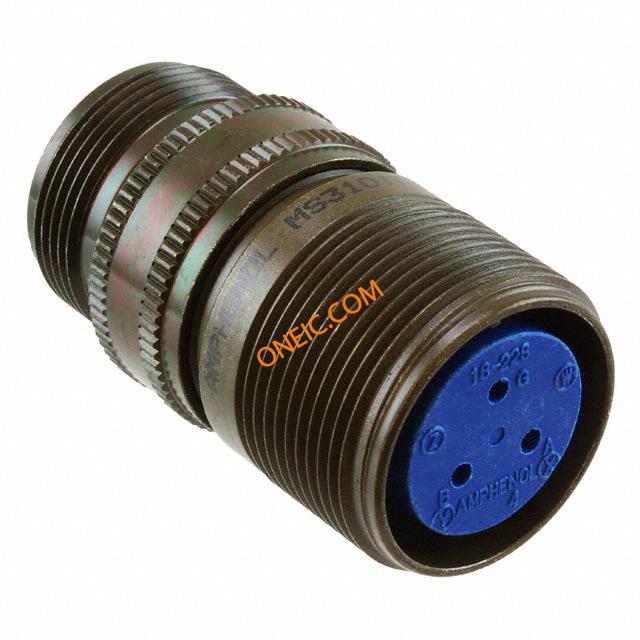

97-3101A-18-22S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 3 POS Solder ST Cable Mount 3 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 3POS CABLE SKT SLD connector;metal circ;cable recept;size 18;3 #16 solder socket cont;olive drab Circular MIL Spec Connector 3P Shell Size 18 Cable Mount Recpt connector, metal circ, cable recept, size 18, 3 #16 solder socket cont, olive drab |
| 分类 |
商业参数
| 其他名称 | 973101A1822S | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 900VAC, 1250VDC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 18 | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | cable connecting receptacle |
| 端接方式 | Solder | 触头类型 | socket contacts |
| 安装类型 | Cable Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Wire |
| 封装形式 | Metal | 外壳材料（壳体） | solid backshell |
| 连接器用途 | Threaded | 插入角度 | 18-22 |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 配接方向 | Threaded |
| 触点数 | 3 | 介电材料 | Diallyl-Phthalate |
| 位数 | 3 | 外壳尺寸-插件 | 18-22 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 3#16 | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3057-1010
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;ms3057a cable clamp;connector size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 18 CABLE GLAND, SHELL SIZE 18 CABLE CLAMP, SIZE 18 connector accessory, ms3057a cable clamp, connector size 18, olive drab finish Amphenol 97 系列 尺寸18 电缆夹, 使用于带护套电缆，带管道保护的电线

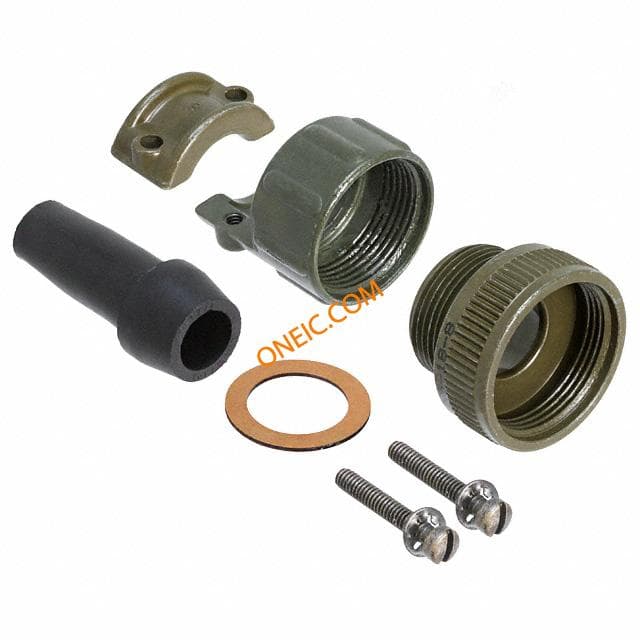

97-67-18-8
amphenol
Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;water resistant cable clamp;conn size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 18 connector accessory, water resistant cable clamp, conn size 18, olive drab finish Cabel hood and fastener; Case: size 18; 11.12mm
97-3057-10-6
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;an3057 cable clamp;step down;conn size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters REAR CLAMP CIRCULAR CABLE CLAMP, SIZE 18 , DIECAST CIRCULAR CABLE CLAMP, SIZE 18 ZINC ALLOY connector accessory, an3057 cable clamp, step down, conn size 18, olive drab finish Amphenol 97 系列 尺寸18 电缆夹, 使用于带护套电缆，带管道保护的电线

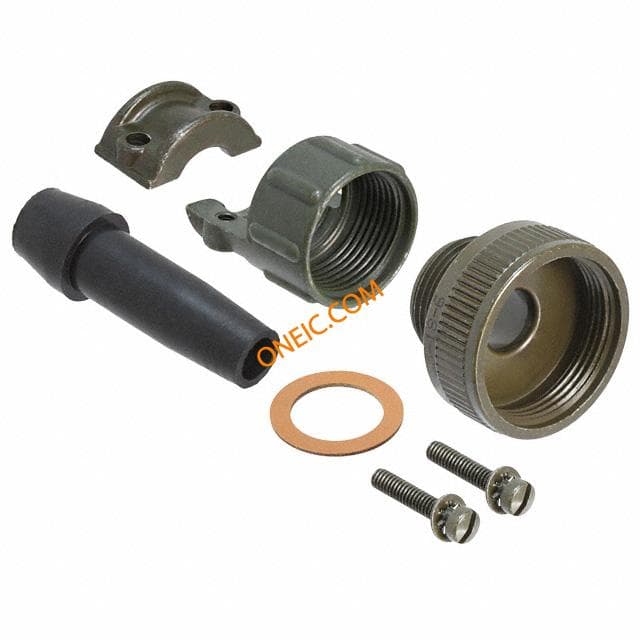

97-67-18-6
amphenol
Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;water resistant cable clamp;size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 18 connector accessory, water resistant cable clamp, size 18, olive drab finish
97-3057-10
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;an3057 cable clamp;connector size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters REAR CLAMP 18 CIRCULAR CABLE CLAMP, SIZE 18 DIECAST CIRCULAR CABLE CLAMP, SIZE 18 ZINC ALLOY connector accessory, an3057 cable clamp, connector size 18, olive drab finish Amphenol 97 系列 尺寸18 电缆夹, 使用于带护套电缆，带管道保护的电线

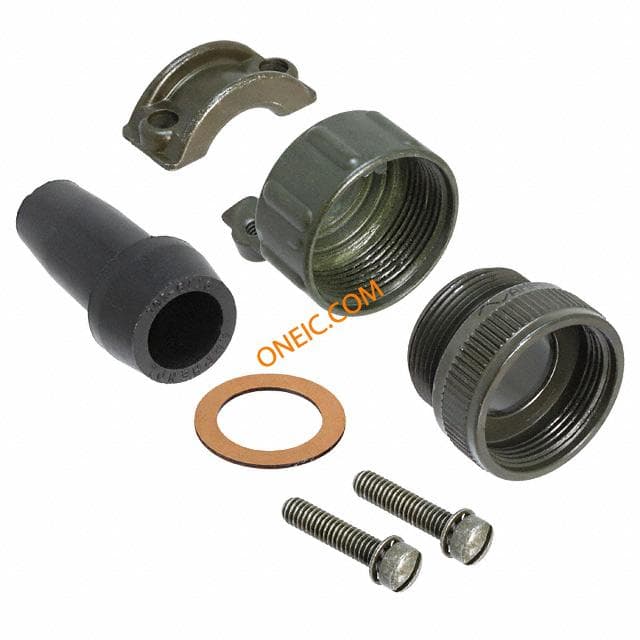

97-67-18-10
amphenol
Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;water resistant cable clamp;conn size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 18 CIRCULAR CABLE CLAMP, SIZE 18 ZINC ALLOY CABLE CLAMP, SIZE 18, DIECAST ZINC connector accessory, water resistant cable clamp, conn size 18, olive drab finish
97-3057-1010-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 18 Straight multipole cable clamp,Size 18 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 18 CIRCULAR CABLE CLAMP, SIZE 18, ZINC ALLOY CABLE CLAMP AND BUSH, SIZE 18 connector accessory, cable clamp with rubber bushing, size 18, olive drab Amphenol 97 系列 橄榄色 压铸件锌 电缆夹, 15.88mm 捆束直径

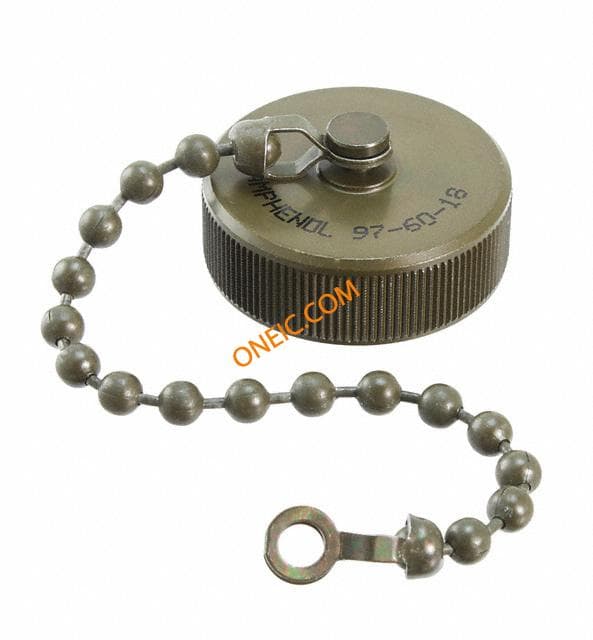

97-60-18
