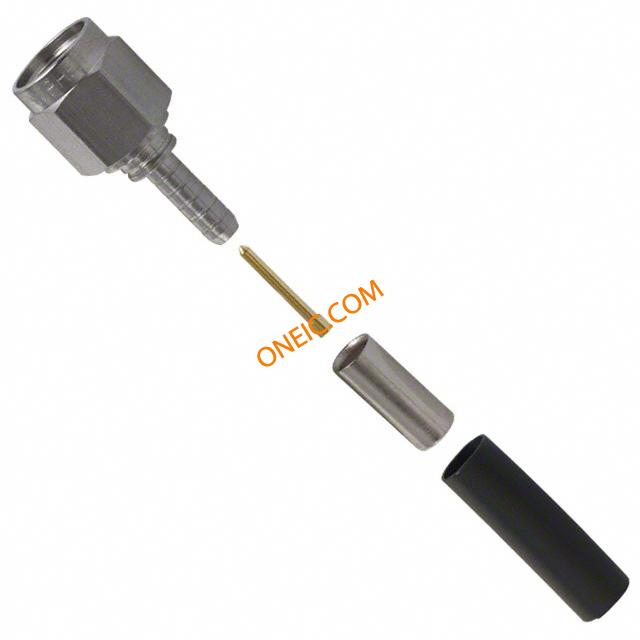

901-9511-3SF
| 制造商 | |
| 描述 | Conn SMA PL 0Hz to 12.4GHz 50Ohm Solder ST Cable Mount Gold Over Nickel CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str plug;crimp/solder;rg174;187;188;316 cable;passivat RF Connectors / Coaxial Connectors STRT PLG 316/174 PAS |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 713-4212 901-9511-3SF 93F1342 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 12.4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 375V | 耦合系数 | Threaded |
| 最大频率 | 12.4GHz | 绝缘电阻 | 5000 MOhms |
机械参数
| 高度 | 7.92 | 重量 | 0.136016 oz |
| 直径 | 7.92 | 包装方式 | Bulk |
| 电缆类型 | RG-174, RG-188A | 本体表面处理 | Passivated |
| 电缆组 | RG-174, 179B, 187A, 188A, 316 | 方向 | Straight |
| 端接方式 | Solder | 重量（g） | 4.00000 |
| 基体材料 | Stainless Steel | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Threaded | 连接器样式 | SMA |
| 触头材料 | Beryllium Copper | 总长度 | 27.9 |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Tetrafluoroethylene Fluorocarbon | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Straight |
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 产品特性 | Heat Shrink Tubing | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | SMA |
环境参数
| 插拔次数 | 100 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
