点击放大查看

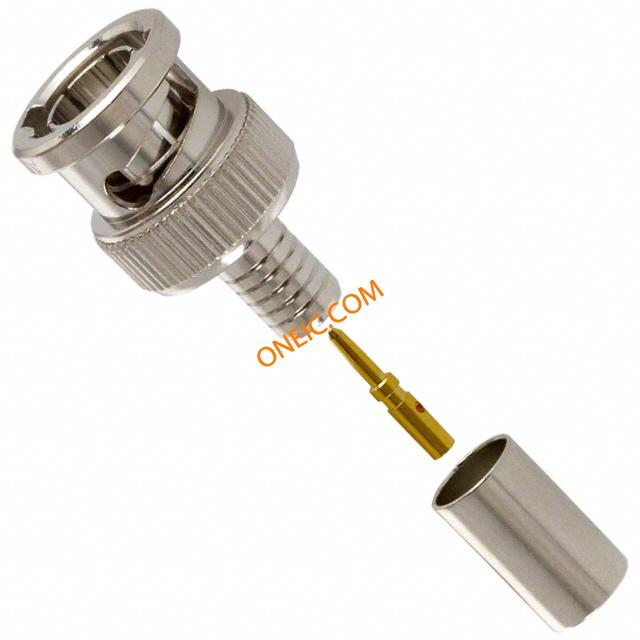

31-71008
| 制造商 | |
| 描述 | Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str plug;crimp-crimp;rg59;62;(see notes);75 ohm-t2 RF Connectors / Coaxial Connectors STRT PLG RG59 Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP For RG-59/62 - Belden 5539Y5, 8221, 8241, 8241A, 8241F, 8263, 8279, 8279A, 9209, 9209A, 9244 |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-71008 16R0626 713-8607 90F8483 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 1 GHz | 阻抗 | 75 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 2GHz | ||
机械参数
| 重量 | 0.009 | 包装方式 | Bulk |
| 电缆类型 | RG-59, RG-62, RG-140, RG-210, Belden 8241, Belden 8263, Belden 8279 | 本体表面处理 | Nickel |
| 电缆组 | RG-59, Belden 8221, 8241, 8241A, 8241F, 8263, 8279A, 9209, 9209A, 9244 | 方向 | Straight |
| 端接方式 | Crimp | 重量（g） | 11.40000 |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 触头材料 | Brass |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 031-71008 | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
9209 010U1000
Belden Wire & Cable
Coaxial Cables 23AWG 1C SHIELD 1000ft BOX BLACK COAXIAL CABLE; 75 OHM IMP.; 23AWG SOLID; ANALOG/DIGITAL VIDEO CABLE BLACK COAXIAL CABLE, 75 OHM IMP., 23AWG SOLID, ANALOG/DIGITAL VIDEO CABLE BLACK Coax - Miniature 75 OHM MINI Video Cable Black
9209 010U500
Belden Wire & Cable
Coaxial Cables 23AWG 1C SHIELD 500ft BOX BLACK COAXIAL CABLE, 75 OHM IMP., 23AWG SOLID, ANALOG/DIGITAL VIDEO CABLE BLACK Coax - Miniature 75 OHM MINI Video Cable Black
112507
amphenol connex
Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg59;62 20awg cc;75 ohm RF Connectors / Coaxial Connectors BNC CRIMP PLUG RG 59/U-75 OHM RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg59, 62 20awg cc, 75 ohm

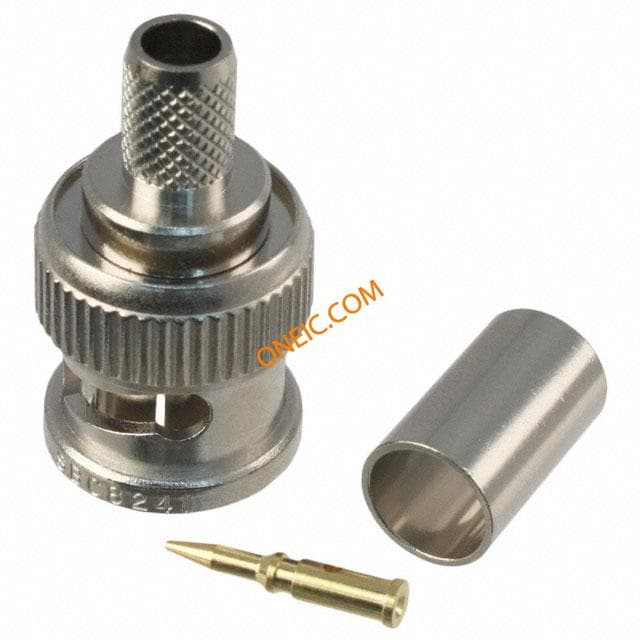

SBC8241
Bomar Interconnect
RF コネクタ PLUG FOR 8241 CONN BNC PLUG STR 75 OHM CRIMP RF Connectors / Coaxial Connectors PLUG FOR 8241 Conn BNC M 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold Conn;RF;BNC;Straight;CablePlug;RG/U59(23AWG);75Ohms;Brass
SPC20099
Avnet, Inc.
RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP
SPC11205
Avnet, Inc.
SBC8241
Winchester Electronics
CONN BNC PLUG STR 75 OHM CRIMP
