点击放大查看

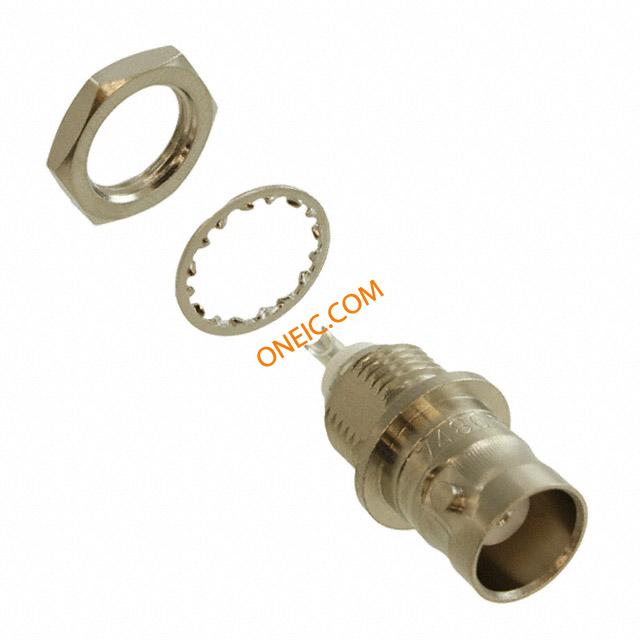

31-236
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Silver CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors BH RECEPTACLE UG-625B/U RF/COAXIAL BNC BHD JACK STR 50 OHM SOLDER |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-236 16R0570 39F1337 713-1079 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85399010 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.249740 oz | 包装方式 | Bulk |
| 电缆类型 | :- | 本体表面处理 | Nickel |
| 方向 | Straight | 端接方式 | Solder Cup |
| 重量（g） | 8.40000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC |
| 触头材料 | Beryllium Copper|Phosphor Bronze | 端接样式 | Solder Cup |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Cup |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Silver |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Straight |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 系列 | :- | 产品特性 | Extended Insulation |
| 极性 | Standard | 连接类型 | Wire |
| 射频系列/标准 | 031-236 | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
